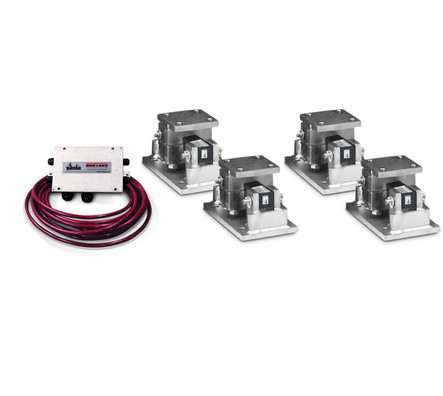

Rice Lake RL1600 HE stainless steel module kits are ideal for hoppers, tanks, blenders, food processing, and custom weighing applications. This kit includes four RL77032SS HE stainless steel load cells, four RL1600 HE stainless steel steel modules, a JB4SS junction box, and 25 ft of EL147HE SURVIVOR load cell cable.
Features
- Hermetically sealed, IP69K rated load cells
- 4 stainless steel steel modules
- 4 stainless steel load cells
- One JB4SS NEMA Type 4X stainless steel signal trim junction box
- 25 ft of hostile environment EL147HE SURVIVOR load cell cable
- Each individual load cell cable length is 25 ft
- Self-checking, easy-to-use design allows module to be bolted directly to tank leg without requiring additional mounting plates or load buttons
- Center loaded double ended beam design
- 150% capacity safe overload
Documentation
Rice Lake RL1600 SS and HE Guide Rice Lake RL1600 SS and HE Installation Manual
2 year limited manufacturer's warranty
- Individual Load Cell Capacity Rating:
- 1500 lb
- Combined Capacity Rating:
- 6000 lb
- Recommended Capacity of Completed Scale:
- 3000 lb
- Load Cell Safe Overload:
- 150% capacity
- Load Cell Rated Excitation:
- 5-10 VDC
- Load Cell Output:
- 3 mV/V
- Output Resistance:
- 700 (+/- 5) ohm
- Input Resistance:
- 770 (+/- 10) ohm
- Construction:
- Stainless steel
- IP Rating:
- IP69K
- Seal Type:
- Hermetically sealed
- Load Cell Other Approvals:
- cFMus
- Load Cell Cable Length:
- 25 ft
- Load Cell Color Code:
- Red = +Excitation, Black = -Excitation, Green = +Signal, White = -Signal
- Part Number:
- 225371
- Model:
- RL1605HE 1500 lb(4)
- Manufacturer:
- Rice Lake Weighing Systems
