Rice Lake RL1600 Weigh Modules (3) 20,000 lb Module Kit

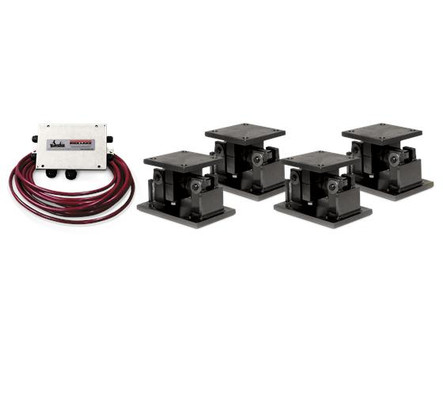

Rice Lake RL1600 Series weigh module kits are best suited for medium to heavy capacity tanks, bins, and hoppers. This Rice Lake module kit included 3 RL75016-20K load cells, one JB4SS stainless steel signal trim j-box, 3 RL1600 mild steel compression mounts, and 25 feet of hostile environment EL147HE SURVIVOR® load cell cable. The RL75016 series load cells are environmentally sealed with an IP67 rating, are constructed of high alloy steel with nickle plating, and have a 25 ft long load cell cable. With the RL1600 module kit being alloy and mild steel, it is designed for use indoors with minimal corrosion and minimal washdown.
Features
- Medium to heavy capacity tank and hopper weighing applications
- 60,000 lb combined capacity rating
- Recommended capacity 30,000 lb
- Recommended readability 5 lb or 10 lb
- Three 20,000 lb rated load cells / modules
- High alloy steel with nickle plated load cells
- IP67 rated load cells
- Load cell cable length 25 ft
- Load cell safe overload up to 150% capacity
- Three painted mild steel RL1600 compression mounts
- 25 ft hostile environment EL147HE Survivor load cell cable for connecting J-box and indicator
- Signal trim stainless steel junction box
- Center-loaded double-ended shear beam design
- Easy load cell replacement
- Low profile design
- Simple installation
- 2 year limited warranty
Documentation
Rice Lake RL75016 Datasheet Rice Lake RL1600 Datasheet Rice Lake RL1600 Installation Guide
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL1600 Weigh Modules (3) 20,000 lb
- Combined Capacity Rating:
- 60,000 lb
- Recommended Capacity Rating:
- 30,000 lb
- Individual Load Cell Capacity Rating:
- 20,000 lb
- Load Cell Safe Overload:
- 150% capacity
- Load Cell Rated Excitation:
- 5-10 V AC/DC (15 V max)
- Load Cell Output:
- 3 mV/V
- Cell Output Resistance:
- 700 (± 5) ohm
- Cell Input Resistance:
- 770 (± 10 ) ohm
- Seal Type:
- Environmentally Sealed
- IP Rating:
- IP67
- Load Cell Cable Length:
- 25 ft
- Load Cell Other Approvals:
- cFM
- Cable Length (junction box to indicator):
- 25 ft
- Hole Threading to Load Cell and Base Plate:
- 3/4-10 UNC
- Anchor Hole Diameter through Bottom Plate:
- 0.78"
- Holes Diameter for Mounting to Tank through Top Plate:
- 0.78"
- Load Cell Color Code:
- Red = +Excitation, Black = -Excitation, Green = +Signal, White = -Signal
