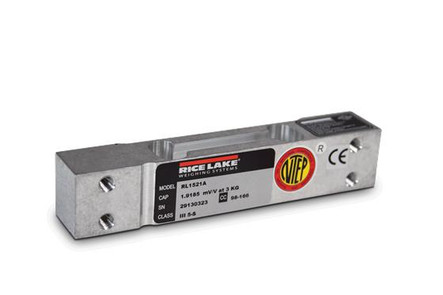

Rice Lake RL1521A-3kg Single Point Load Cell
The Rice Lake RL1521A single point load cells are constructed of aluminum and is IP66 environmentally sealed. The RL1521A is NTEP approved for legal for trade applications.
RL1521A load cells are interchangeable with NMB C2G1, VPS Tedea-Huntleigh 1022, VPG Celtron LPS (except 3 kg), VPG BLH C2G1, Artech 61022, and Fairbanks 4900 Series Checkweighers load cells.
Features
- 3 kg / 6.6 lb capacity rating
- Aluminum construction
- IP66 Environmentally sealed
- 2 year limited manufacturer's warranty
- NTEP Approved
- Safe overload up to 150% capacity
- 10 ft of cable
- Max platform size of 13.75 x 13.75 inch
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- Rice Lake RL1521A-3kg
- Part Number:
- 132261
- Certification:
- NTEP Certified 1:5000 III
- Other Approvals:
- cFM
- Capacity Rating:
- 3 kg / 6.6 lb
- Safe Overload:
- 150% capacity
- Length:
- 5.12"
- Height:
- 0.87"
- Width:
- 1"
- Construction / Finish:
- Aluminum
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, Red = + Signal, White = - Signal
- Rated Excitation:
- 5-10 VDC (15 V maximum)
- Full Scale Output:
- 2 mV/V
- Output Resistance:
- 350 (± 3) ohm
- Input Resistance:
- 410 (± 15) ohm
- Insulation Resistance:
- 2,000 megohms
- Compensated Temperature Range:
- 14° F to 104° F / -10°C to 40°C
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Seal Type:
- Environmentally sealed IP66
- Total Error:
- 0.03 % full scale
- Cable Length:
- 10 ft
- Cable Diameter:
- 0.14 PVC jacket
