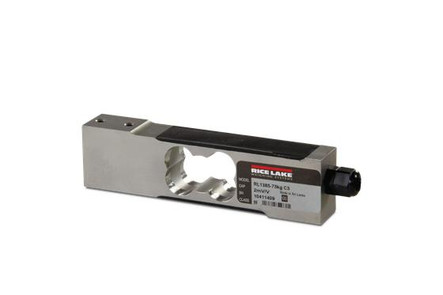

Rice Lake RL1385-75kg Single Point Load Cell
The Rice Lake RL1385 single point load cells are constructed of stainless steel and feature an IP67 rating. The RL1835 load cells are NTEP approved for legal for trade applications except for 100 kg and 200 kg capacities.
RL1385 load cells are interchangeable with Flintec PC1 load cells.
Features
- 75 kg / 165.4 lb capacity rating
- Stainless steel construction
- Environmentally sealed IP67
- 2 year limited manufacturer's warranty
- NTEP Approved Class III 1:4500
- Safe overload up to 200% capacity
- 10 ft of cable
- Max platform size of 18 in x 18 in
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL1385-75kg
- Approvals:
- FM, NTEP
- Certification:
- NTEP Certified 1:4500 Class III
- Capacity Rating:
- 75 kg / 165.4 lb
- Safe Overload:
- 200% capacity
- Length:
- 5.9"
- Height:
- 1.57"
- Width:
- 1"
- Thredding:
- 1/4-20 UNC x 0.75 DP
- Construction / Finish:
- Stainless steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, Red = + Signal, White = - Signal, Yellow = Shield
- Rated Excitation:
- 5-10 VDC (15 V maximum)
- Full Scale Output:
- 2 mV/V
- Output Resistance:
- 330 ± 25 ohm
- Input Resistance:
- 390 ± 20 ohm
- Insulation Resistance:
- 5,000 megohms
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Seal Type:
- Environmentally sealed IP67
- Combined Error:
- 0.02 % full scale
- Cable Length:
- 10 ft
- Cable Diameter:
- 0.196 PVC jacket
- Max Platform Size:
- 18" x 18"
