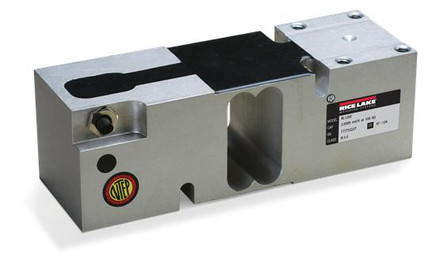

Rice Lake RL1260-100kg Single Point Load Cell - Discontinued, Replaced with Part Number 188684
The Rice Lake RL1260 single point load cells are constructed of anodized aluminum and feature an IP66 rating. The RL1260 load cells are NTEP approved for legal for trade applications.
RL1260 load cells are interchangeable with Rice Lake RLPWM16, VPG Tedea-Huntleigh 1260, and HBM PW16 load cells.
Features
- 100 kg / 220.5 lb capacity rating
- Anodized aluminum construction
- Environmentally sealed IP66
- 2 year limited manufacturer's warranty
- NTEP Approved Class III 1:5000
- Safe overload up to 150% capacity at center loading point
- 10 ft of cable
- Max platform size of 24 in x 24 in
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL1260-100kg
- Approvals:
- FM, NTEP
- Certification:
- NTEP Certified 1:5000 Class III
- Capacity Rating:
- 100 kg / 220.5 lb
- Safe Overload:
- 150% capacity
- Length:
- 7.4"
- Height:
- 2.46"
- Width:
- 2.49"
- Thredding:
- 5/16-18 UNC
- Construction / Finish:
- Anodized aluminum
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, Blue = + Sense, Brown = - Sense, Red = + Signal, White = - Signal
- Rated Excitation:
- 5-10 VDC (15 V maximum)
- Full Scale Output:
- 2 mV/V
- Output Resistance:
- 350 (± 3) ohm
- Input Resistance:
- 415 (± 15) ohm
- Insulation Resistance:
- 5,000 megohms
- Compensated Temperature Range:
- 14‚°F to 104‚°F/-10‚°C to 40‚°C
- Operating Temperature Range:
- -40‚° F to 150‚° F / -40‚°C to 65‚°C
- Seal Type:
- Environmentally sealed IP66
- Total Error:
- 0.02 % full scale
- Cable Length:
- 10 ft
- Cable Diameter:
- 0.220 PVC jacket
- Max Platform Size:
- 24" x 24"
