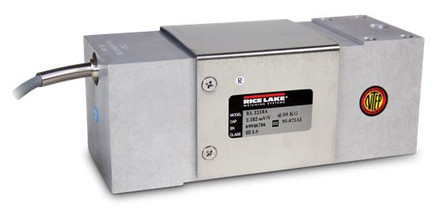

Rice Lake RL1218A-150kg Single Point Load Cell, NTEP
Features
- 150 kg / 330.7 lb capacity rating
- Anodized aluminum construction
- Environmentally sealed IP67
- 2 year limited manufacturer's warranty
- NTEP Approved Class III 1:5000
- Safe overload up to 150% capacity at center loading point
- 10 ft of cable
Interchange Options
- Rice Lake Weighing Systems RL1250
- Rice Lake Weighing Systems RLPWM12
- VPG Tedea-Huntleigh 1250
- HBM PW12
Documentation
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL1218A-150kg
- NTEP:
- Yes
- Class:
- III
- Capacity Rating:
- 150 kg / 330.7 lb
- Safe Overload:
- 150% capacity
- Length:
- 7.52"
- Height:
- 2.95"
- Width:
- 3.23"
- Thredding:
- 5/16-18 UNC x 15 DP
- Construction / Finish:
- Anodized aluminum
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, Blue = + Sense, Yellow = - Sense, Red = + Signal, White = - Signal
- Rated Excitation:
- 5-10 VAC/DC (15 V maximum)
- Full Scale Output:
- 2.0 mV/V
- Output Resistance:
- 350 (± 3) ohm
- Input Resistance:
- 415 (± 15) ohm
- Insulation Resistance:
- 5,000 megohms
- Compensated Temperature Range:
- 14°F to 104°F/-10°C to 40°C
- Operating Temperature Range:
- 0° F to 150° F / -18°C to 65°C
- Seal Type:
- Environmentally sealed IP67
- Cable Length:
- 10 ft
- Cable Diameter:
- 0.220 PVC jacket
- Max Platform Size:
- 24" x 24"
