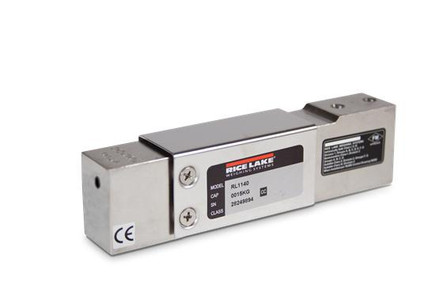

Rice Lake RL1140-30kg Single Point Load Cell
The Rice Lake RL1140 single point load cells are constructed of stainless steel and is IP65 rated. The RL1140 load cells are not NTEP approved for legal for trade applications.
RL1140 load cells are interchangeable with VPG Tedea-Huntleigh 1140 load cells.
Features
- 30 kg / 66.1 lb capacity rating
- Stainless steel construction
- Potted IP65
- 2 year limited manufacturer's warranty
- Safe overload up to 200% capacity over center loading pin
- 10 ft of cable
- Max platform size of 15.75 in x 15.75 in
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL1140-30kg
- Approvals:
- FM
- Capacity Rating:
- 30 kg / 66.1 lb
- Safe Overload:
- 200% capacity
- Length:
- 5.91"
- Height:
- 1.57"
- Width:
- 1.16"
- Construction:
- Stainless steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, Blue = + Sense, Brown = - Sense, Red = + Signal, White = - Signal
- Rated Excitation:
- 5-10 VDC (15 V maximum)
- Full Scale Output:
- 2 mV/V
- Output Resistance:
- 350 (± 3) ohm nominal
- Input Resistance:
- 415 (± 15) ohm
- Insulation Resistance:
- 2,000 megohms
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Seal Type:
- Potted IP65
- Total Error:
- 0.02 % full scale
- Deflection at Capacity:
- 0.015 in (0.4 mm)
- Cable Length:
- 10 ft
- Cable Diameter:
- 0.200 PVC jacket
- Max Platform Size:
- 15.75" x 15.75"
