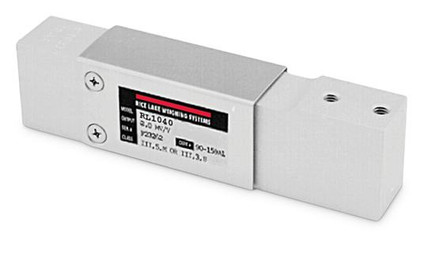

Rice Lake RL1040-20kg Single Point Load Cell
The Rice Lake RL1040 single point load cells are constructed of anodized aluminum and is IP67 rated. The RL1040 load cells are NTEP approved for legal for trade applications.
RL1040 load cells are interchangeable with VPG Celtron LOC, VPG Tedea-Huntleigh 1040, and Cardinal TSP.
Features
- 20 kg / 44.1 lb capacity rating
- Anodized aluminum construction
- Potted IP67
- 2 year limited manufacturer's warranty
- NTEP Approved
- Safe overload up to 200% capacity over center loading pin
- 10 ft of cable
- Max platform size of 15.75 in x 15.75 in
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL1040-20kg
- Approvals:
- FM, NTEP
- Certification:
- NTEP Certified 1:5000 III
- Capacity Rating:
- 20 kg / 44.1 lb
- Safe Overload:
- 200% capacity
- Length:
- 5.91"
- Height:
- 1.57"
- Width:
- 1.16"
- Thredding:
- 1/4-20 UNC x 0.39 DP
- Construction / Finish:
- Anodized aluminum
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, Blue = + Sense, Brown = - Sense, Red = + Signal, White = - Signal
- Rated Excitation:
- 5-10 VDC (15 V maximum)
- Full Scale Output:
- 2 mV/V
- Output Resistance:
- 350 (± 3) ohm
- Input Resistance:
- 415 (± 5) ohm
- Insulation Resistance:
- 2,000 megohms
- Compensated Temperature Range:
- 14° F to 104° F / -10°C to 40°C
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Seal Type:
- Potted IP67
- Total Error:
- 0.02 % full scale
- Deflection at Capacity:
- 0.015 in (0.4 mm)
- Cable Length:
- 10 ft
- Cable Diameter:
- 0.200 PVC jacket
- Max Platform Size:
- 15.75" x 15.75"
