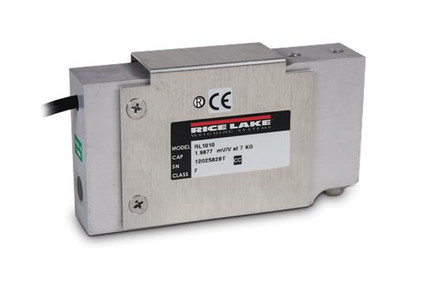

Rice Lake RL1010-50kg Single Point Load Cell, NTEP, Potted
The Rice Lake RL1010 potted single point load cells is constructed of aluminum and is IP67 rated. This RL1010 load cell is NTEP approved for legal for trade applications. Please note that not all RL1010 load cells are NTEP approved.
RL1010 load cells are interchangeable with VPS Tedea-Huntleigh 1010 load cells.
Features
- 50 kg / 110 lb capacity rating
- Aluminum construction
- Potted IP67
- 2 year limited manufacturer's warranty
- NTEP Approved
- Safe overload up to 150% capacity at center of loading point
- 10 ft of cable
- Max platform size of 15.75 in x 15.75 inch
Documentation
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL1010
- Certification:
- NTEP Certified 1:5000 III
- Other Approvals:
- cFM
- Capacity Rating:
- 50 kg / 110 lb
- Safe Overload:
- 150% at center of loading point
- Length:
- 4.65"
- Height:
- 2.60"
- Width:
- 1.32"
- Construction / Finish:
- Anodized aluminum
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, Blue = + Sense, Brown = - Sense, Red = + Signal, White = - Signal
- Rated Excitation:
- 5-10 VDC (15 V maximum)
- Full Scale Output:
- 2 mV/V
- Output Resistance:
- 350 (± 3) ohm, nominal
- Input Resistance:
- 415 (± 15) ohm
- Insulation Resistance:
- 5,000 megohms
- Compensated Temperature Range:
- 14° F to 104° F / -10°C to 40°C
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Seal Type:
- Potted
- IP Rating:
- IP67
- Total Error:
- 0.02 % full scale
- Cable Length:
- 10 ft
- Cable Diameter:
- 0.200 PVC jacket
- Max Platform Size:
- 15.75 in x 15.75 in
