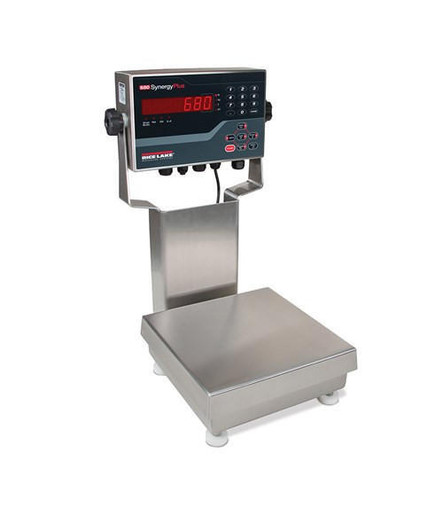

This Rice Lake Ready-n-Weigh Bench Scale System features the CW-90XB Scale Base and the 680 Indicator. The CW-90XB Scale Base features a built in five point overload protection and a fully stainless steel construction. Coupled with the 680 Indicator, this system offers a user-friendly interface, eight LED annunciators, a fully numeric keypad, and provides highly visible readings with a large LED display. The CW-90B-680 is equipped with a variety of onboard communication options and quality assurance approvals. This system matches an IP69K rated hermetically seal base with an IP69K rated indicator which creates one of the most durable and water resistant scales available on the market. The CW-90XB-680 is also NTEP and Measurement Canada approved for use in legal for trade applications.
CW90XB Base Features
- 12" x 12" base
- IP69K rated hermetically sealed load cell
- 304 stainless steel construction
- Five point overload protection with up to 180% to 200% overload rating
- Four adjusted rubber feet for leveling
- NTEP and Measurement Canada approved
680 Indicator Features
- Stainless steel IP69K enclosure
- Bright 0.8 inch tall seven-digit, seven-segment LED display
- Three serial ports: two RS-232, one full duplex RS-485
- Ethernet TCP/IP
- USB device
- Four onboard configurable digital I/O points, TTL logic
- Full numeric keypad that allows for tare and setpoint entry
- Battery backed time and date
- Formattable tickets
- Eight LED status annunciators
Indicator Approvals
- NTEP CC 19-021, Class III/IIIL, 10,000d
- Measurement Canada AM-6121C
- Class III/IIIHD, 10,000d
- OIML R76/2006-A-NL1-19.56
- EU Test Certificate TC11562
- UKCA
- UL/cUL Listed
- CE Marked
Applications
- General Weighing
- Batching / Setpoints
- Accumulation Weighing
Documentation
Rice Lake Ready-n-Weigh CW-90XB/680 Datasheet Rice Lake 680 Technical Manual
- Capacity:
- 50 lb
- Readability:
- 0.01 lb
- NTEP:
- Yes
- Class:
- III
- Base NTEP CC:
- 95-072
- Indicator NTEP CC:
- 19-021
- Base IP Rating:
- IP69K
- Load Cell Seal Type:
- Hermetically sealed
- Indicator IP Rating:
- IP69K
- Weighing Pan Dimensions:
- 12" x 12"
- Construction:
- 304 stainless steel
- Communication:
- Two RS-232, full duplex RS-485, full duplex USB (device), Ethernet (10/100)
- Display Type:
- Red LED seven 0.8" tall, seven-segment digits
- Weighing Units:
- lb, kg, g, oz, tn, t, none
- System Linearity:
- Within 0.01 % of full scale
- A/D Sample Rate:
- 6.25-120 Hz, software selectable
- Power:
- 100-240 VAC 50-60 Hz
- Weight (Approximate):
- 27 lb
- Brand:
- Rice Lake
- Model:
- CW-90XB-680-50
