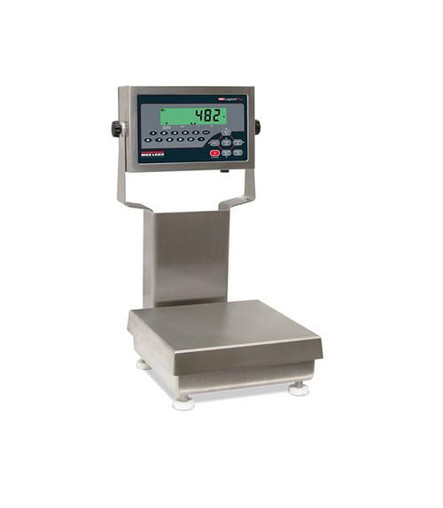

This Rice Lake Ready-n-Weigh Bench Scale System features the CW-90B Scale Base and 482 Plus Legend Indicator. The CW-90B Scale Base boasts exceptional durability and a five point overload protection, ensuring reliable and precise measurements in even the most challenging environments. Coupled with the 482 Plus Legend Indicator, this system offers a user-friendly interface, intuitive controls, fully numeric keypad, and provides highly visible readings with a large LCD display. The CW-90B-482 Plus is equipped with a variety of communication options and expansive capabilities through accessory boards. The Rice Lake CW-90B-482Plus is also NTEP and Measurement Canada approved for use in legal for trade applications. Backed with an IP67 rated base and an IP66 rated indicator, the unit is an excellent solution for use in medium washdown and outdoor environments.
CW90B Base Features
- 12" x 12" base
- IP67 rated load cell
- 304 stainless steel construction
- Five point overload protection with up to 180% to 200% overload rating
- Four adjusted rubber feet for leveling
- NTEP and Measurement Canada approved
482 Legend Plus Indicator Features
- NEMA Type 4X/IP66, heavy-gauge stainless steel
- 7 button keypad plus full numeric keypad
- Two independent serial ports, RS-232 and 20mA
- LCD green backlit display, transmissive/transflective 0.8 in (20 mm), six-digit, seven-segment
- PreVent breather vent
- Programmable printer ticket formats can perform gross, net, accumulator and setpoints
- Configurable with Revolution software
- Five built in options for continuous stream formats
- Operator functions through menu for audit trail, preset tare, unit ID, accumulator, time and date, setpoints, communications and print formats
- 8 configurable setpoints with sequenced batch engine
- Adaptive filter or rolling average filter
- Additional option cards available (analog output 0-10 VDC 4-20Ma), (relay output card 2 digital inputs 4 dry contact relays), (USB and Ethernet TCP/IP) *mounting bracket required for option cards*
- Optional rechargeable Lithium Ion battery (not included)
Indicator Approvals
- NTEP CC 12-123 Accuracy Class III/IIIL, 10,000d
- Measurement Canada AM-5892
- Accuracy Class III/IIIHD,10,000d
- OIML R76/2006-NL1-12.48,
- EU Test Certificate TC8322
- Accuracy Class III, 10,000d
- CE Marked
- UL/cUL Listed
Applications
- General Weighing
- Batching / Setpoints (only possible with appropriate accessories)
- Accumulation Weighing
Documentation
Rice Lake Ready-n-Weigh CW-90B/482 Datasheet Rice Lake 482 Technical Manual
- Capacity:
- 25 lb
- Readability:
- 0.005 lb
- NTEP:
- Yes
- Class:
- III
- Base NTEP CC:
- 95-072
- Indicator NTEP CC:
- 12-123A1
- Base IP Rating:
- IP67
- Indicator IP Rating:
- IP66
- NEMA Type:
- 4X
- Weighing Pan Dimensions:
- 12" x 12"
- Construction:
- 304 stainless steel
- Keys on Display:
- full numeric keypad, power, menu, zero, tare, gross/net, unit, print
- Display Type:
- LCD backlit display, transmissive/transflective 0.8 in (20 mm), six-digit, seven-segment
- Weighing Units:
- kg, g, lb, oz, tn, t
- System Linearity:
- Within 0.01 % of full scale
- Status Annunciators:
- Gross, net, center of zero, stand still, lb, kg, tare, preset tare
- A/D Sample Rate:
- 5, 10, 20, 40Hz, software selectable
- Standard Communication:
- Port 1 - RS-232, Port 2 - RS-232 or 20 mA
- RS-232 baud rates:
- 1200, 2400, 4800, 9600,19200, 38400
- RS-232 bits:
- 7 or 8
- RS-232 Parity:
- even, odd, or none
- Power:
- 115 VAC 50/60 Hz
- Weight (Approximate):
- 27 lb
- Brand:
- Rice Lake
- Model:
- CW-90B-482Plus-25
