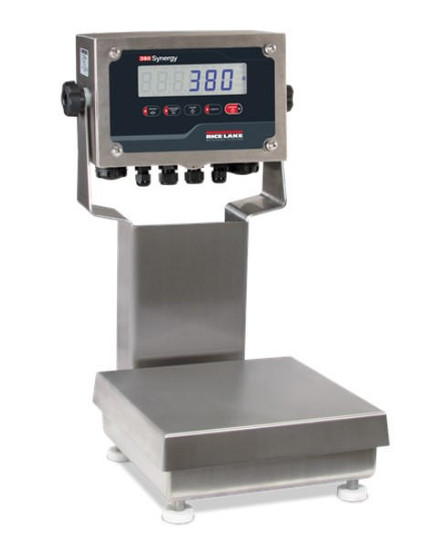

This Rice Lake Ready-n-Weigh Bench Scale features the CW-90B Scale Base and 380 Indicator. The CW-90B Scale Base provides a robust platform with its durable construction and extensive overload protection, ensuring reliable performance even in demanding environments. Coupled with the 380 Indicator, this system offers precise measurements, easy-to-read display, and user-friendly operation. With its convenient battery power, the Rice Lake Ready-n-Weigh CW-90B-380 offers a high quality portable weighing solution. The unit is also NTEP approved for use in legal for trade applications.
CW90B Base Features
- 10" x 10" base
- IP67 rated load cell
- 304 stainless steel construction
- Five point overload protection with up to 180% to 200% overload rating
- Four adjusted rubber feet for leveling
- NTEP and Measurement Canada approved
380 Indicator Features
- Battery powered via four C-cell batteries, Optional AC adapter (PN:206433)
- Easy installation and removal of batteries through two battery packs accessed through the bottom of the indicator
- 304 stainless steel enclosure with IP66 rating overall
- Simplified 5-button operation
- Three wire RS-232 and USB 2.0 communication capable
- LCD display, six 1" digits
- Full front-panel digital calibration
- Capable of printing, Optional Date and Time can be added with module (PN:204258)
- Push button and keyed tare
- NTEP and Measurement Canada approved
Applications
- General Weighing
Documentation
Rice Lake Ready-n-Weigh CW-90B/380 Datasheet Rice Lake 380 Datasheet Rice Lake 380 Technical Manual
- Capacity:
- 25 lb
- Readability:
- 0.005 lb
- NTEP:
- Yes
- Class:
- III
- Base NTEP CC:
- 95-072
- Indicator NTEP CC:
- 21-051
- Base IP Rating:
- IP67
- Indicator IP Rating:
- IP66
- Power:
- Batteries: 4 Alkaline C-cell (Optional: 115/230VAC to 12VDC adapter)
- Keypad:
- 5 membrane tactile keys
- Serial Communications:
- RS-232 (3 wire) or USB
- Display Type:
- LCD display, six-digits, 1" tall
- Construction:
- 304 stainless steel
- Weighing Pan Dimensions:
- 10" x 10"
- Units:
- g, lb, t, tn, kg, oz
- System Linearity:
- ±0.01% full scale
- Status Annunciators:
- g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net
- Excitation Voltage:
- 5 VDC
- Compensated Temperature Range:
- 14°F to 104°F
- Brand:
- Rice Lake Weighing Systems
- Model:
- CW-90B-380-25
