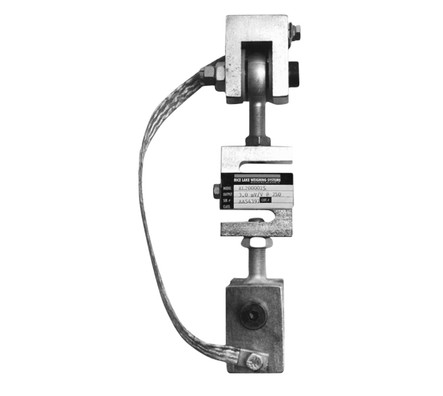

Rice Lake ITCMSS 500 lb Module, 5/8-11 NC Threading, NTEP

MSRP: $892.00
$847.40
(Save $44.60)
Part #:
46770
Availability:
Typically ships in 1-2 days

Rice Lake ITCMSS suspension mount kits are best suited for suspended hoppers and tanks, mechanical scale conversions, and custom tension applications. This Rice Lake ITCMSS module kit includes one RL20000ST s-beam load cells, a grounding strap, and a complete stainless steel clevis assemblies. Rice Lake RL20000ST load cells are IP67 rated, constructed of stainless steel, and are NTEP approved. The clevis and rod-end ball joint assemblies provide correct load alignment and reduces the overall length of the mount compared to traditional mount assemblies. Nylon washers and grounding straps help protect the load cells from stray electrical currents.

Features

  • One fully stainless steel module and load cell
  • 5/8-11 NC threaded mounting holes
  • Clevis mounts with nylon insulating washers
  • PTFE lined rod-end ball joints
  • Load cell is completely isolated from stray currents
  • Included grounding strap provides alternative path to ground
  • Lower overall height compared to other isolated tension assemblies
  • NTEP approved load cell

Documentation

Rice Lake ITCMSS Data Sheet Rice Lake ITCMSS Installation Manual Rice Lake RL20000ST Data Sheet

2 year limited manufacturer's warranty
Capacity:
500 lb
Load Cell Safe Overload:
150% capacity
NTEP:
Yes
Class:
III/III L
NTEP CC:
03-007
Load Cell Rated Excitation:
5-10 VDC (maximum of 15 V)
Load Cell Output:
3 mV/V
Cell Output Resistance:
350 +/- 3.5 ohm
Cell Input Resistance:
430 +/- 60 ohm
Construction:
Stainless steel
IP Rating:
IP67
Seal Type:
Environmentally sealed
Load Cell Other Approvals:
FM
Load Cell Cable Length:
20 ft
Module Hole Threading:
5/8-11 NC
Grounding Strap:
Yes
Part Number:
46770
Model:
ITCMSS-500 lb
Manufacturer:
Rice Lake Weighing Systems
