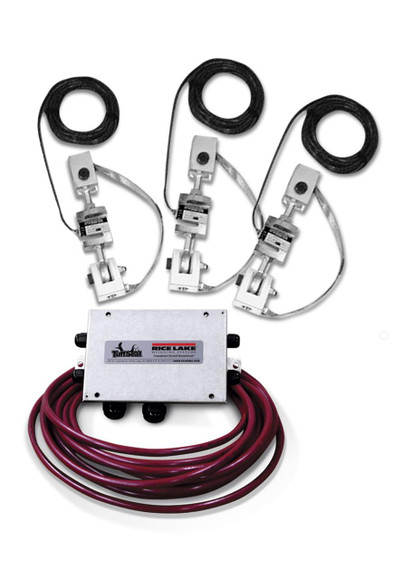

Rice Lake ITCMSS suspension mount kits are best suited for suspended hoppers and tanks, mechanical scale conversions, and custom tension applications. This Rice Lake module kit includes three RL20000ST s-beam load cells, three ITCMSS stainless steel clevis assemblies, one JB4SS junction box, 25 ft of EL147HE SURVIVOR load cell cable, and grounding straps. Rice Lake RL20000ST load cells are IP67 rated, constructed of stainless steel, and are NTEP approved. The clevis and rod-end ball joint assemblies provide correct load alignment and reduces the overall length of the mount compared to traditional mount assemblies. Nylon washers and grounding straps help protect the load cells from stray electrical currents.
Features
- 5/8-11 NC threaded mounting holes
- Three fully stainless steel modules and load cells
- One JB4SS NEMA Type 4X stainless steel signal trim junction box
- 25 ft of hostile environment EL147HE SURVIVOR load cell cable
- Each individual load cells cable length is 20 ft
- Clevis mounts with nylon insulating washers
- PTFE lined rod-end ball joints
- Load cells are completely isolated from stray currents
- Included grounding strap provides alternative path to ground
- Lower overall height compared to other isolated tension assemblies
- NTEP approved load cells
Documentation
Rice Lake ITCMSS Data Sheet Rice Lake ITCMSS Installation Manual Rice Lake RL20000ST Data Sheet
- Individual Load Cell Capacity Rating:
- 2500 lb
- Combined Capacity Rating:
- 7500 lb
- Recommended Capacity of Completed Scale:
- 3750 lb
- Load Cell Safe Overload:
- 150% capacity
- NTEP:
- Yes
- Class:
- III/III L
- NTEP CC:
- 03-007
- Load Cell Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Load Cell Output:
- 3 mV/V
- Cell Output Resistance:
- 350 +/- 3.5 ohm
- Cell Input Resistance:
- 430 +/- 60 ohm
- Construction:
- Stainless steel
- IP Rating:
- IP67
- Seal Type:
- Environmentally sealed
- Load Cell Other Approvals:
- FM
- Load Cell Cable Length:
- 20 ft
- Module Hole Threading:
- 5/8-11 NC
- Grounding Strap:
- Yes
- Part Number:
- 46745
- Model:
- ITCMSS-2500 lb (3)
- Manufacturer:
- Rice Lake Weighing Systems
