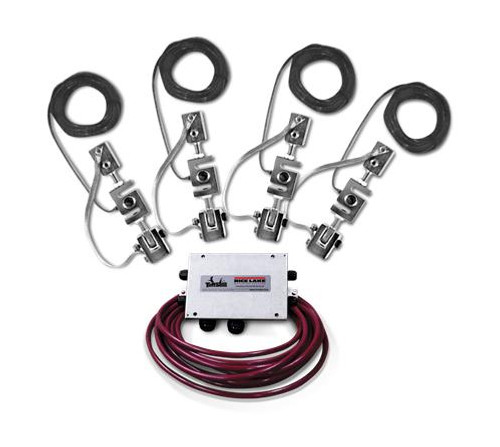

Rice Lake ITCMHE hostile environment suspension mount kits are best suited for suspended hoppers and tanks, mechanical scale conversions, and custom tension applications. This Rice Lake ITCMHE module kit includes one RL20001HE s-beam load cells, a grounding strap, and a complete stainless steel clevis assemblies. Rice Lake RL20001HE load cells are IP68 rated, constructed of stainless steel, and are NTEP approved. The clevis and rod-end ball joint assemblies provide correct load alignment and reduces the overall length of the mount compared to traditional mount assemblies. Nylon washers and grounding straps help protect the load cells from stray electrical currents.
Features
- IP68 welded seal load cell for hostile environments
- One fully stainless steel module and load cell
- 1/2-13 NC threaded mounting holes
- Clevis mounts with nylon insulating washers
- PTFE lined rod-end ball joints
- Load cell is completely isolated from stray currents
- Included grounding strap provides alternative path to ground
- Lower overall height compared to other isolated tension assemblies
- NTEP approved load cell
Documentation
Rice Lake ITCMHE Data Sheet Rice Lake ITCMHE Installation Manual Rice Lake RL20001HE Data Sheet
- Capacity:
- 500 lb
- Load Cell Safe Overload:
- 150% capacity
- NTEP:
- Yes
- Class:
- III/III L
- NTEP CC:
- 98-071
- Load Cell Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Load Cell Output:
- 2 mV/V
- Bridge Resistance:
- 350 ohm
- Construction:
- Stainless steel
- IP Rating:
- IP68
- Seal Type:
- Welded seal
- Load Cell Other Approvals:
- FM
- Load Cell Cable Length:
- 20 ft
- Module Hole Threading:
- 1/2-13 NC
- Grounding Strap:
- Yes
- Load Cell Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Part Number:
- 46599
- Model:
- ITCMHE-500 lb
- Manufacturer:
- Rice Lake Weighing Systems
