Rice Lake ITCM (3) 2000 lb Module Kit

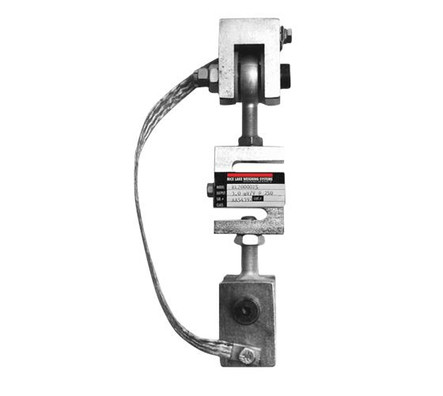

Rice Lake ITCM 3 module mount kits are best suited for use in hanging scale applications such as hoppers or tanks. The Rice Lake ITCM 3 module kits include 3 RL20000 s-beam load cells, 3 grounding straps, 3 zinc-plated clevis assemblies, 1 JB4SS NEMA Type 4X stainless steel signal trim junction box, and 25 ft of hostile environment EL147HE Survivor load cell cable. The load cells are environmentally sealed with an IP 67 rating, are constructed of nickel plated alloy steel, and have a 20 ft long load cell cable. The clevis and rod-end ball joint assemblies provide correct load alignment and reduces the overall length of the mount compared to traditional mount assemblies. Nylon washers and the grounding strap help protect the load cells from stray electrical currents. The 3 module kits make it easy to spread the load evenly between all 3 load cells.
Features
- 6000 lb combined capacity rating
- 3/4-10 NC threaded mounting holes
- 2000 lb individual load cell capacity rating
- Alloy steel construction, nickel plated load cells
- IP 67 rated load cells
- Load cell cable length 20 ft
- Load cell safe overload up to 150% capacity
- NTEP Approved load cells
- Mild steel zinc-plated clevis mounts with nylon insulating washers
- Grounding straps
- 25 ft hostile environment EL147HE Survivor load cell cable
- PTFE-Lined rode-end ball joints
- Signal trim stainless steel junction box
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- ITCM (3) Module kit
- Part Number:
- 18021
- Combined Capacity Rating:
- 6000 lb
- Individual Load Cell Capacity Rating:
- 2000 lb
- Load Cell Safe Overload:
- 150% capacity
- Load Cell Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Load Cell Output:
- 3 mV/V
- Load Cell Seal Type:
- IP67 Environmentally Sealed
- Load Cell Cable Length:
- 20 ft
- Load Cell Certification:
- NTEP Certified 1:5000 III / 1:10,000 IIIL
- Load Cell Other Approvals:
- cFM, CE
- Load Cell Cable Length (junction box to indicator):
- 25 ft
- Module Height:
- 9.50"
- Module Width:
- 2.68"
- Module Depth:
- 2.68"
- Hole Threading:
- 3/4-10 NC
- Grounding Strap:
- Yes
