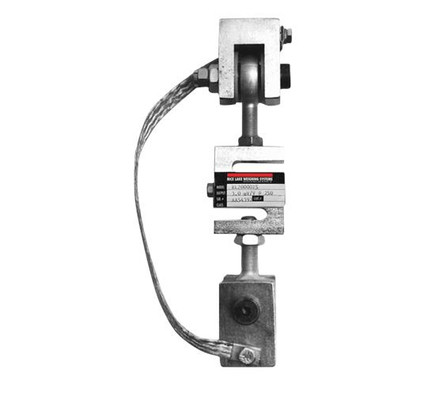

Rice Lake ITCM 200 lb Suspension Module Kit, 3/8-16 NC Threading, 30335
Rice Lake ITCM suspension mount kits are best suited for use in hanging scale applications such as hoppers or tanks. This Rice Lake ITCM module kit includes one RL20000 s-beam load cells, a grounding strap, and a zinc-plated clevis assemblies. The load cell is environmentally sealed with an IP 67 rating, constructed of nickel plated alloy steel, and has a 20 ft long load cell cable. The clevis and rod-end ball joint assemblies provide correct load alignment and reduces the overall length of the mount compared to traditional mount assemblies. Nylon washers and the grounding strap help protect the load cells from stray electrical currents.
Features
- 3/8-16 NC threaded mounting holes
- 200 lb individual load cell capacity rating
- Alloy steel construction, nickel plated load cells
- IP 67 rated load cells
- Load cell cable length 20 ft
- Load cell safe overload up to 150% capacity
- NTEP Approved load cells
- Mild steel zinc-plated clevis mounts with nylon insulating washers
- Grounding straps
- PTFE-Lined rode-end ball joints
Documentation
1 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- ITCM Module kit
- Part Number:
- 30335
- Capacity:
- 200 lb
- Load Cell Safe Overload:
- 150% capacity
- Load Cell Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Load Cell Output:
- 3 mV/V
- Load Cell Seal Type:
- IP67 Environmentally Sealed
- Load Cell Cable Length:
- 20 ft
- Load Cell Certification:
- NTEP Certified 1:5000 III / 1:10,000 IIIL
- Load Cell Other Approvals:
- cFM, CE
- Hole Threading:
- 3/8-16 NC
- Grounding Strap:
- Yes
