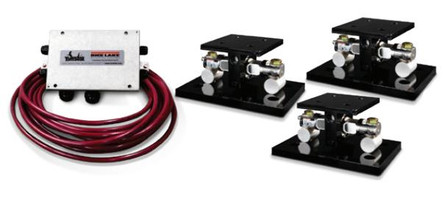

Rice Lake EZ Mount mild steel module kits are ideal for indoor hoppers, tanks, blenders, and custom weighing applications. This kit includes three RL72020 alloy steel load cells, three EZ Mount painted mild steel modules, a JB4SS junction box, and 25 ft of EL147HE SURVIVOR load cell cable. RL72020 load cells are IP67 rated and NTEP approved.
Features
- Environmentally sealed, IP67 rated load cells
- 3 painted mild steel steel modules
- 3 alloy steel load cells
- One JB4SS NEMA Type 4X stainless steel signal trim junction box
- 25 ft of hostile environment EL147HE SURVIVOR load cell cable
- Each individual load cell cable length is 30 ft
- Unique sliding pin design compensates for thermal expansion/contraction
- Self-checking design
- Easy load cell installation or replacement
- Simplified design allows bolting directly to tank and floor
- Center-loaded double-ended shear beam design
- 150% capacity safe overload
- NTEP certified load cells 1:5,000 Class III/1:10,000 Class IIIL Multiple Cell
Documentation
Rice Lake EZ Mount Mild Steel Data Sheet Rice Lake RL72020 Data Sheet Rice Lake EZ Mount Installation Manual
2 year limited manufacturer's warranty
- Individual Load Cell Capacity Rating:
- 40,000 lb
- Combined Capacity Rating:
- 120,000 lb
- Recommended Capacity of Completed Scale:
- 60,000 lb
- Load Cell Safe Overload:
- 150% capacity
- NTEP:
- Yes
- Class:
- III/III L
- NTEP CC:
- 21-064
- Load Cell Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Load Cell Output:
- 3 mV/V
- Output Resistance:
- 700 (+/- 4) ohm
- Input Resistance:
- 5 to 10 k: 700 (± 14) ohm, 20 to 150 k: 770 (± 10) ohm, 200 to 250 k: 700 (± 14) ohm
- Construction:
- Painted mild steel modules and alloy steel load cells
- IP Rating:
- IP67
- Seal Type:
- Environmentally sealed
- Load Cell Other Approvals:
- cFMus
- Load Cell Cable Length:
- 25 ft
- Load Cell Color Code:
- Red = +Excitation, Black = -Excitation, Green = +Signal, White = -Signal
- Part Number:
- 208885
- Model:
- EZ Mount 40,000 lb(3)
- Manufacturer:
- Rice Lake Weighing Systems
