Rice Lake EZ Mount 1 HE Stainless Steel Weigh Modules (3) 50,000 lb Module Kit

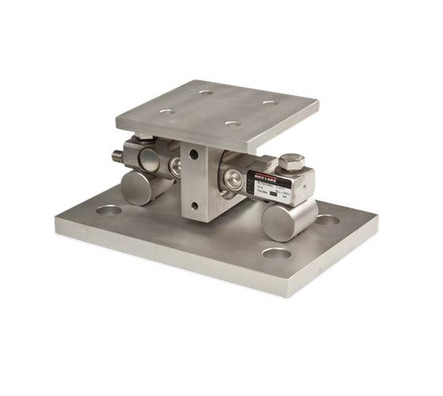

Rice Lake EZ Mount 1 HE Series weigh module kits are best suited for medium to heavy capacity tanks, bins and hoppers. This Rice Lake module kit included 3 RL72010 MH-50K load cells, one JB4SS stainless steel signal trim j-box, 3 EZ Mount 1 stainless steel compression mounts, and 25 feet of hostile environment EL147HE SURVIVOR® load cell cable. The RL72010 MH Series load cells give you accuracy and dependability in any environment. The load cells are hermetically sealed with an IP 68 rating, are constructed of stainless steel, and have a 25 ft long load cell cable. With the entire design being stainless steel and extreme protection rated load cells this kit is an ideal solution for exterior tank scales or scales in high corrosion and wash-down environments.
Features
- Medium to heavy capacity tank and hopper weighing applications
- 150,000 lb combined capacity rating
- Recommended readability of 20 lb or 50 lb
- Three 50,000 lb individual load cells (capacity rating)
- Stainless steel load cells
- IP68 rated load cells
- Load cell cable length 25 ft
- Load cell safe overload up to 150% capacity
- Three stainless steel EZ Mount 1 compression mounts
- 25 ft hostile environment EL147HE Survivor load cell cable
- Signal trim stainless steel junction box
- Easy load cell replacement
- Low profile design
- Simple design allows for bolting directly to tank and floor
- Unique sliding pin design compensates for thermal expansion/contraction
- 2 year limited warranty
Documentation
Rice Lake RL72010MH Double-Ended Beam Load Cell Specifications
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- EZ Mount 1 HE 50,000 lb (3)
- Part Number:
- 46700
- Combined Capacity Rating:
- 150,000 lb
- Individual Load Cell Capacity Rating:
- 50,000 lb
- Load Cell Safe Overload:
- 150% capacity
- Load Cell Rated Excitation:
- 5-15 VDC
- Load Cell Output:
- 3 mV/V
- Cell Output Resistance:
- 700 ±5 ohm
- Cell Input Resistance:
- 780 ±10 ohm
- Load Cell Seal Type:
- IP68 Hermetically Sealed
- Load Cell Cable Length:
- 25 ft
- Load Cell Other Approvals:
- cFM, CE
- Cable Length (junction box to indicator):
- 25 ft
- Hole Threading to Load Cell and Base Plate:
- 1-14 UNS
- Anchor Hole Diameter through Bottom Plate:
- 1.19"
- Holes Diameter for Mounting to Tank through Top Plate:
- 0.68"
- Load Cell Color Code:
- Red = +Excitation, Black = -Excitation, Green = +Signal, White = -Signal, Orange = Shield
