Rice Lake EL146HE Hostile Environment four conductor load cell cable is for connecting scale bases to digital indicators, replacing damaged cables, or extending existing cables. Individual conductors are 20 AWG stranded copper and are encased in foil shielding, 80% braided tinned copper shield, a red PVC jacket, and a red polyurethane jacket which makes for a very durable yet flexible cable. The additional polyurthan jacket provides extra protection from damage by chemicals and abrasion.

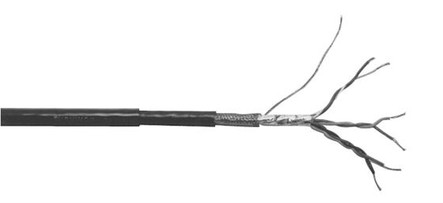

*Picture is a representation of the actual product. The actual product has 4 conductor wires and a bare shield wire.
Features
- 20 ft length
- Diameter: 0.28in (7.1mm)
- 20 AWG tinned copper wire, stranded
- 80% Braided shielding
- Red PVC and Polyurethane jacket
- Industry-standard color coded conductors
- Temperature rating: -22°F to 176°F (-30°C to 80°C)
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- EL146HE
- Part Number:
- 15494
- Cable Length:
- 20 ft
- Cable Diameter:
- 0.28in (7.1mm)
- # of Conductors:
- 4
- Conductor Colors:
- Red, Black, White, Green
- Shielding:
- Yes, 80% braided
- Outside Casing:
- Red Polyurethane over Red PVC
- Temperature rating:
- -22°F to 176°F (-30°C to 80°C)
