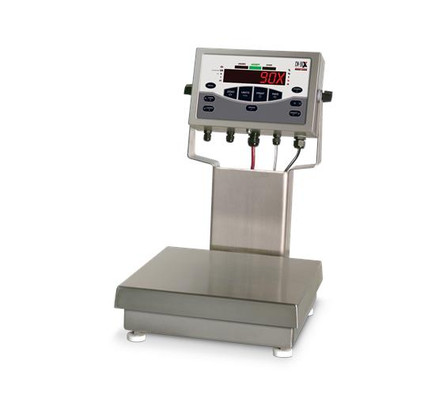

Rice Lake CW-90X Checkweighing Bench Scale, 10 lb x 0.002 lb, 10" x 10" Base, 115 V
The Rice Lake CW-90X bench scale is built for checkweighing in heavy washdown environments. The digital indicator features a red LED weight display and a rigid piezo keypad which is one of the most durable keypads found on any weighing device. Its piezo keypad can withstand contact from knives and is resistant to liquids and other contaminants. The CW-90X bench scale is constructed of 304 stainless steel and has an IP69K rating for both the indicator and the load cell which means it is very well protected from water damage. The scale base also features shock absorbing technology with maximum overload protection of 200%. The setup menu is accessible through the front panel for easy configuration and can be password protected to control access. Setpoint values for over, under, and accept are easy to configure and a highly visible color coded light bar shows what the current status of the sample is. It offers three different types of checkweighing: range mode, target weight mode, and target percent mode. In addition, up to 50 unique ID's can be stored on the indicator for easy recall. For communication with peripheral devices the CW-90X comes standard with 2 full duplex RS-232 serial ports. Optional upgrades for communication include ethernet, USB or fiber optic. The four standard digital I/O's can be configured to perform keyed functions remotely or to control external devices.
The Rice Lake CW-90X bench scale is NTEP approved and can be used in Legal for Trade weighing applications. The CW-90X bench scale conforms to NSF/ANSI Standard 169 making it ideal for food processing applications.
Features
- Checkweighing with color indication for below, accept, and over
- Piezo keypad containing zero, units, print, tare, over, under, ID, target, enter, menu, power
- Highly visible red LED display, 0.8 in, 6 digit, 14 segment
- IP69K rated indicator and load cell
- Hermetically sealed stainless steel loadcell
- Shock protection
- 200% maximum overload
- PreVent breather vent
- Multiple unit options, lb, kg, g, oz, lb-oz
- Battery backed date and time
- Memory for up to 50 IDs
- Configurable print formats
- 2 Standard RS-232 serial ports
- 4 configurable digital I/Os
- Audit trail tracking
- Optional communication boards for Ethernet, USB or fiber-optic
- Comes with 12" stainless steel indicator column
Approvals
- CW-90X: NTEP CC 08-092
- Class III/IIIL 10,000d
- Measurement Canada AM-5710
- OIML R76/2006-GBI-10.02
- EU Test Certificate GB-1385
- UL/cUL Listed
- CE marked
- Scale base: NTEP CC 95-072
- Class III 5,000 d
- Measurement Canada AM-5082
- Class III 5,000 d
- NSF
Weighing Applications
- General Weighing
- Checkweighing
- Indicator NTEP CC:
- 08-092 Class III/IIIL 10,000 d
- Scale NTEP CC:
- 95-072, Class III 5,000 d
- Capacity:
- 10 lb
- Readability:
- 0.002 lb
- Maximum Displayed Resolution:
- 1:100,000
- Maximum Approved Resolution:
- 1:5,000
- Weighing Units:
- lb, kg, g, oz, lb-oz
- System Linearity:
- Within 0.01 % of full scale
- Display Type:
- Red LED display, 0.8" (20mm), six-digit, 14-segment
- Keys on Display:
- zero, units, print, tare, over, under, ID, target, clear, decimal, enter, menu, power,
- Status Annunciators:
- Under, Accept, Over, Percent, kg, g, lb, oz, center of zero, G/B, N, T, PT, neg, motion
- Sample Rate:
- 960, 480, 240, 120, 60, 30, 15, 7.5 per second
- Digital I/O:
- Four channels on CPU board
- IP Rating:
- IP69K
- NEMA Type:
- 4X
- Certified Operating Temperature Range:
- 14 °F to 104 °F / -10 °C to 40 °C
- Power:
- 115 VAC 50/60 Hz
- Power Consumtion:
- 1.5 A @ 115 VAC (8 W)
- Circuit Protection:
- RFI, EMI, ESD protection
- Indicator Dimensions:
- 9.5" x 6" x 3.12"
- Platform Dimensions:
- 10" x 10" x 4.25"
- Column Height:
- 12"
- Weight:
- Approximately 29 lb
- Brand:
- Rice Lake Weighing Systems
- Model:
- CW-90X Bench Scale
- Part Number:
- 105965
