Rice Lake CP-10 Counterpart Counting Scale, Digi S-YC Base, 10 lb x 0.001 lb

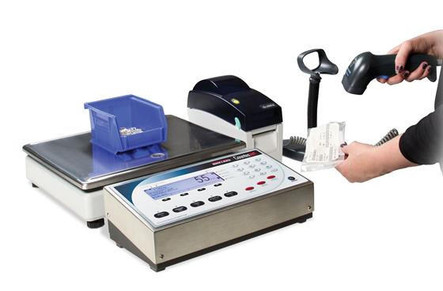

More than a weight indicator and more than a counting scale, Counterpart from Rice Lake stands alone as a configurable counting indicator, able to convert almost any scale base into an intelligent piece-counting device—for parts of every shape and size. Unlike traditional counting scales, Counterpart uses Rice Lake’s simple configuration method to adjust to the parameters and resolution of any attached scale base, whether a floor scale, bench scale, or laboratory balance. Counterpart also connects with most bar code scanners, label printers, and inventory management software, making it quite possibly the most versatile piece of equipment in any inventory setting.
Features
- Counterpart indicator paired with Digi S-YC base
- Designed for simplicity of use
- CE and UL Listed
- Up to 100,000 displayed resolution
- Counting resolution 1/1,000,000
- 13.4" x 11" weighing pan
- 4 Digital I/O
- Setpoint output
- 20 mA serial communication port
- 2 RS-232 ports
- 1 Ethernet TCP/IP port
- 150 item memory
- 24 button, full alpha numeric keypad
- 240 x 64 pixel, transmissive, LCD display with adjustable contrast
- Display units in lb, kg, oz, and grams
- Zero, gross, net, pcs, motion, instuff, recomp, scale number, and low battery annunciators
- Single channel A/D
Weighing Applications
- Weighing
- Counting
Documentation
2 year manufacturer's limited warranty
- Capacity:
- 10 lb
- Readability:
- 0.001 lb
- Linearity:
- ±0.017 full scale
- Maximum Displayed Resolution:
- 1:100,000
- Maximum Approved Resolution:
- 1:5,000
- Weighing Units:
- kg, lb, oz, g
- Display:
- 240 x 64 pixel VGA LCD, transmissive
- Keypad Controls:
- 24 button alpha numeric
- Digital Inputs/Outputs:
- 4
- Load Cell Excitation:
- 5 VDC
- Load Cell Drive:
- Up to 8 x 350 ohm load cells per scale or up to 16 700 ohm load cells per scale
- Scale Channels:
- 2
- Analog Load Cell Input Range:
- 0 to 4.5 mV/V
- Analog Load Cell Signal Sensitivity:
- 0.3 ƒÃ…½¼V/graduation minimum, 1.5 ƒÃ…½¼V/grad recommended
- Serial Communication:
- 2 - Full duplex RS-232; 1 - 20ma
- RS-232 baud rates:
- up to 115,200 bps
- Ethernet:
- 1 - Ethernet TCP/IP port
- Print Format:
- Standard EPL label format; format can be customized to work with virtually any printer
- Operating Temperature Range:
- 10°F to 104°F / 0°C to 40°C
- Power:
- AC adapter with US plug, battery power is optional
- Weighing Pan Dimensions:
- 13.4" x 11"
- Brand:
- Rice Lake
- Model:
- Counterpart
