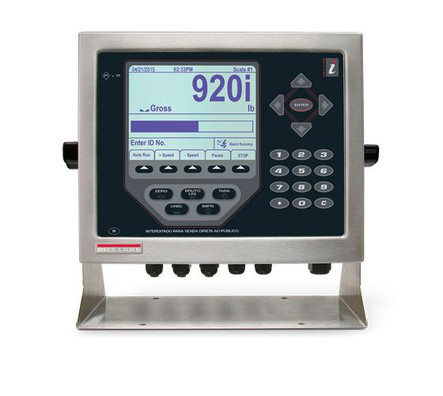

Rice Lake 920i Programmable HMI Indicator, Universal Enclosure, Single Channel, 230 VAC, PS/2 and DB-9 Connector, NTEP
The Rice Lake 920i is a top level programmable HMI indicator suitable for advanced industrial weighing applications where process control, storing data, advanced networking and operator prompts are required. It comes standard with built-in software for six different Truck In/Out modes and batching or it can be programmed to run custom user programs using the iRite programming language. The onboard memory has room for up to 1,000 truck IDs while the batching software supports up to 100 setpoints, either latched or free-running. With up to 10 programmable display screens, a full numeric keypad and 5 softkeys with up to 10 user defined the 920i HMI is capable of controlling advanced weighing processes and also providing a simple operator interface. Communicating with external devices is accomplished with 4 onboard serial ports while controlling external devices is accomplished with the 6 onboard digital inputs/outputs. Option cards are available for additional communication ports, digital inputs/outputs, analog inputs/outputs, pulse input, or memory expansion. The 920i also has the functionality for local and remote operation when two units are connected together. With a NEMA 4X/IP66 rated enclosure constructed of heavy gauge stainless steel this indicator is able to handle harsh environmental conditions.
The Rice Lake 920i is NTEP approved and can be used in Legal for Trade applications.
Features
- Single channel
- 230 VAC power supply
- PS/2 and DB-9 connector
- NEMA Type 4X/IP66, heavy-gauge stainless steel enclosure
- Full numeric keypad
- Batching software 100 setpoints, 30 configurable types
- 6 different truck in/out modes
- Up to 10 programmable display screens
- 5 programmable soft keys, 10 user defined
- 60 configurable operator prompts
- Supports up to (16) 350 ohm load cells or (32) 700 ohm load cells per A/D board
- Onboard full duplex RS232, 2 wire RS485, 20mA serial, PS/2 keyboard communication ports
- 2 onboard option card slots
- Large LCD backlit display
- 64K user onboard NV Ram and user programmable 128K flash memory
- 20 Programmable printer ticket formats with up to 1000 characters each
- iRite program language and programs up to 512 K in size
- Configurable with Revolution software
- Configurable password protected Menu
- 6 configurable digital inputs/outputs (expandable)
- Multi-range / interval capabilities
Approvals
- NTEP CC 01-088, Class III/IIL 10,000d
- Measurement Canada AM-5426 Class III/IIIHD 10,000d
- OIML approved 6,000/10,000, UK 2658
- CE Marked
- UL/cUL Listed (universal, deep and wall mount) / UL/cUL Recognized (panel mount) *exception 12-24 VDC models
Weighing Applications
- General Weighing
- Custom Applications
- Truck In/Out
- Batching
- Accumulation Weighing
- Peak Hold
Documentation
- Brand:
- Rice Lake Weighing Systems
- Model:
- 920i Universal Enclosure
- Power:
- 230 VAC
- Power Consumption:
- 25 W
- Power Plug:
- NEMA 5-15 (115 and 230 VAC models)
- Approvals:
- NTEP, Measurement Canada, OIML, EU, RoHS, UL, CE (12-24 VDC model not UL)
- NTEP CC:
- 01-088, Class III/IIL 10,000d
- Batching Software:
- Yes
- # of Batching Setpoints:
- 100
- # of Setpoint Types:
- 30
- Truck In/Out Software:
- Yes
- Onboard Digital I/O:
- 6 channel
- Keypad:
- 27 membrane tactile keys - Full numeric, 5 softkeys
- Communication Port:
- PS/2 and DB-9
- Serial Communications:
- RS-232, RS-485, 20mA
- Display Type:
- 4.6 in x 3.4 in LCD, 320 x 240 pixels, adjustable contrast, Transmissive
- Enclosure Construction:
- Stainless Steel
- Maximum Displayed Resolution:
- 9,999,999
- Maximum Internal Resolution:
- 8 million counts
- System Linearity:
- ±0.01% full scale
- Excitation Voltage:
- 10 VDC, 16 x 350¦ or 32 x 700 ohms load cells per A/D card
- Analog Signal Input Range:
- -45 mV to +45 mV
- Analog Signal Sensitivity:
- 0.3 ¼V/graduation minimum at 7.5 Hz, 1.0 Ž¼V/graduation recommended
- A/D Channels:
- Single Channel
- A/D Sample Rate:
- 7.5 to 960 Hz, selectable
- Enclosure Rating:
- NEMA Type 4X/IP66
- Operating Temperature Range:
- 14°F to 122°F (-10°C to 50°C)
- Certified Temperature Range:
- 14°F to 104°F (-10°C to 40°C)
- Housing Dimensions (not including stand) (WxHxD):
- 10.56 x 8.51 x 4.25 in
- Weight:
- 9.5 lb (4.3 kg)
