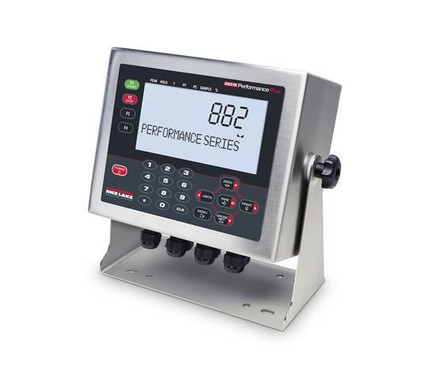

Rice Lake 882IS Plus 7.5VDC Intrinsically Safe Indicator, Intrinsically Safe AC Power, 1/2 NPT-M20 Metric Thread Adapter, NTEP
The Rice Lake 882IS digital weight indicator is for use in hazardous environments where it is necessary to use intrinsically safe equipment. It features a NEMA 4X/IP66 rated stainless steel housing and can power up to (4) 350 ohm load cells or (8) 700 ohm load cells. The AC power supply can be safely mounted in hazardous areas and wiring is simplified to one AC conduit line and seal from the safe area. Use with FM-approved load cells or scale bases for IS approval per official FM control drawings.
The 882IS is NTEP approved and can be used in legal for trade scale systems.
Features
- Hazardous area AC power supply included
- Plus refers to the full numeric keypad
- 1/2 NPT-M20 Metric Thread Adapter
- FM Approvals, NTEP certified, UL/cUL Listed
- Up to 10,000 displayed resolution
- Supports up to (4) 350 ohm load cells or (8) 700 ohm load cells
- Seven-digit, seven-segment LCD display 121 x 24 dot matrix messaging area with white LED backlight
- NEMA Type 4X/IP66 rated stainless steel housing
- Display units in lb, kg, oz, or g
- Gross, net, center of zero, motion, and units annunciators
- Tilt stand included
- I/O module option: one serial port, optional analog outputs, optional fieldbus cards
- Duplex fiber optic interface
- Front panel digital calibration
- Automatic zero and span temperature compensation
Intrinsic Safety
FM/cFM
- Class I,II,III, Division 1
- Groups ABCDEFG T4Class I
- Zone 0 AEx/Ex ia IIC T4 Ga
- Zone 20 AEx/Ex ia IIIC T135°C Da Ta = -10°C to +40°C (14°F to 104°F)
ATEX/IECEx
- II 1 G Ex ia IIC T4 Ga
- II 1 D Ex ia IIIC T135°C Da
Additional Options
- IS6V2 Battery option
- IS6V2 Battery 100-240VAC NEMA 5-15 (North American plug)
- Power supply, 882IS mb-EPS-100-240-X2, dual output 6.8 VDC 200mA
- Power supply, 882IS mb-EPS-100-240-X2, dual output 6.8 VDC 200mA, 1/2 in NPT-M20
- Safe Area Module, 882 smart I/O interface
- I/O Interface Option Card: Single analog output (0-10VDC, 0-20mA, 4-20mA)
- I/O Interface Option Card: Ethernet/IP
- I/O Interface Option Card: DeviceNet
- I/O Interface Option Card: ProfiNet
- I/O Interface Option Card: Profibus
- I/O Interface Option Card: Modbus TCP
- I/O Interface Option Card: EtherCAT
Downloads
882IS Intrisically Safe Indicator Datasheet 882IS Technical Manual
882IS IS6V2 Battery Instructions 882IS 6V Battery Charger Instructions
882IS mb-EPS-100-240-X2 Power Supply Instructions 882IS Condition of Use
882IS IO Module Installation Manual 882IS Interface Option Cards Installation Manual
- Maximum Displayed Resolution:
- 1:100,000
- Maximum Resolution (NTEP):
- 1:10,000
- Weighing Units:
- lb, kg, oz, g
- Display:
- Seven-digit, seven-segment LCD display
- Keypad Controls:
- Zero, Gross/Net, Tare, Print, Units Conv, Start, Stop, full numeric keypad
- FM Approvals:
- Class I, II, III; Divisions 1, 2; Groups A, B, C, D, E, F, G, T4
- IP Rating:
- IP66
- NEMA Type:
- 4X
- Load Cell Excitation:
- 3.0 VDC at 87.5 ohm, 4.6 VDC at 700 ohm
- Load Cell Current:
- 34mA
- Load Cell Drive:
- Up to 4 x 350 ohm and 8 x 700 ohm
- Analog Load Cell Input Range:
- 0.6mV/V - 4.0mV/V
- Analog Load Cell Signal Sensitivity:
- 0.2 μV/graduation minimum, 1.5 μV/grad recommended
- Conversion Rate:
- 60 updates/second
- Operating Temperature Range:
- 14°F to 104°F / -10°C to 40°C
- Weight:
- 6.1 lb
- Brand:
- Rice Lake
- Model:
- 882IS Plus
