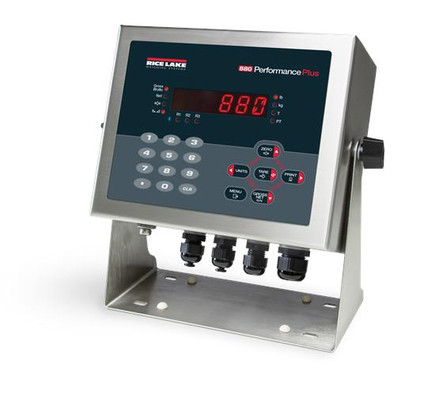

Rice Lake 880 Universal Performance Plus Digital Weight Indicator, 115 VAC, NTEP
The Rice Lake 880 Plus digital weight indicator is a high end solutions for applications requiring an IP69K rated enclosure with multiple capabilities. The simple design yet complex capabilities of the Rice Lake 880 allow the indicator to be used for truck scales, batching systems, general weighing, and custom applications. For custom application the Rice Lake software iRite can be used to The 880 can be used with a wide range of communication options such RS-232, USB, RS-485, and Ethernet TCP/IP. The Universal Plus version of the 880 includes a full numeric keypad, making operation more convenient.
Features
- Display bezel NEMA Type 4X, Type 12, and IP69K
- Displayed resolution up to 999,999
- Supports up to (16) 350 ohm load cells or (32) 700 ohm load cells
- Bright red LED, 0.56", six-digit, 14-segment with decimal or comma
- RS-232 full duplex or RS-485 half duplex; USB micro A/B connector 2.0; Ethernet TCP/IP communication ports
- Four on-board digital I/O channels
- Full numeric keypad that allows for tare and set-point entry
- Battery backed time and date
- Programmable ticket formats up to 1,000 characters for header text, gross, net, accumulator and set-points
- Local/remote operation
- Multi-range or multi-interval weighing
- Operator functions through menu key for audit trail, preset tare, accumulator, time & date and setpoints
- Hardware slot for one option card
- Gross, net, center of zero, standstill, lb, kg, tare, preset tare, multi-range/interval 1/2/3 status annunciators
- 2 year limited warranty
- Made in the USA
Approvals
- NTEP CC 13-080 Class III/IIIL, 10,000d
- Measurement Canada AM-5931C Class III/IIIHD, 10,000d
- OIML R76/1992-GB1-04.02 Class III, 10,000d
- EU Test Certificate TC8463
- UL/cUL Listed (universal)
- UL/cUL Recognized (panel mount)
- CE Marked
Weighing Applications
- General Weighing
- Batching / Setpoints
- Accumulation Weighing
- Truck Scales
Documentation
880 Technical Manual 880 Data Sheet
2 year manufacturer's limited warranty
- NTEP:
- Yes
- NTEP CC:
- 13-080 Class III/IIIL, 10,000d
- Maximum Displayed Resolution:
- 1: 999,999
- Maximum Internal Resolution:
- 8 million counts/8,000,000 23 bit
- Maximum Approved Resolution:
- 1:10,000
- Weighing Units:
- lb, kg, g, oz, tn, t, none
- System Linearity:
- 0.01% full scale
- Display Type:
- Red LED, 0.56", six-digit, 14-segment with decimal or comma
- Status Annunciators:
- Gross, net, center of zero, standstill, lb, kg, tare, preset tare, multi-range/interval 1/2/3
- Excitation Voltage:
- 10 VDC, 16 x 350 ohm or 32 x 700 ohm load cells
- Analog Signal Input Range:
- -45 mV to 45 mV
- Analog Signal Sensitivity:
- 1 μV/graduation recommended
- A/D Sample Rate:
- 7.5 to 960 Hz, software selectable
- IP Rating:
- IP69K
- Material:
- Stainless steel
- Communication:
- RS-232 full duplex or RS-485 half duplex; USB micro A/B connector 2.0; Ethernet TCP/IP
- Operating Temperature Range:
- 14°F to 122°F
- Certified Operating Temperature Range:
- 14°F to 104°F
- Power:
- 100-240 VAC 50-60 Hz
- Housing Dimensions:
- 9.87" x 9.38" x 4.33"
- Weight:
- 12 lb
- Brand:
- Rice Lake
- Model:
- 880 Universal Performance Plus
- Part Number:
- 177989
