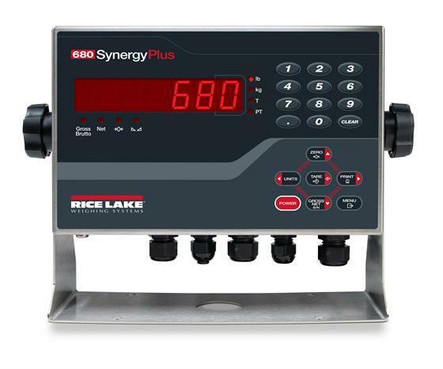

Rice Lake 680 Synergy Plus Digital Weight Indicator, With Analog Option Card, 115-230 VAC, NTEP
The Rice Lake 680 Synergy Plus is a perfect solution for mid to high level applications in food, chemical, and any other hazardous environment application. The IP69K rating and stainless steel design enables the 680 to remain operational through these difficult environments. This indicator also features multiple options for communication such as RS-232, RS-485, Ethernet TCP/IP, and USB device. The eight built in LED annunciators allow for status updates throughout the weighing process. The 680 has four on-board configurable digital I/O points and the numeric keypad allows for external tare and setpoint data entry. The Rice Lake 680 is NTEP approved for use in legal for trade applications.
Features
- Analog option card built in
- Analog card provides either a 0-10 VDC, 0-20 mA or 4-20 mA output
- Stainless steel IP69K enclosure
- Displayed resolution up to 1,000,000
- Supports up to (8) 350 ohm load cells or (16) 700 ohm load cells
- Bright 0.8 inch tall seven-digit, seven-segment LED display
- Three serial ports: two RS-232, one full duplex RS-485
- Ethernet TCP/IP
- USB device
- Four onboard configurable digital I/O points, TTL logic
- Full numeric keypad that allows for tare and setpoint entry
- Battery backed time and date
- Formattable tickets
- Eight LED status annunciators
- 2 year limited warranty
Approvals
- NTEP CC 12-123, Class III/IIIL, 10,000d
- Measurement Canada AM-5892,
- Class III/IIIHD, 10,000d
- OIML R76/2006-A-NL1-19.56
- UL/cUL Listed
- CE Marked
Weighing Applications
- General Weighing
- Batching / Setpoints
- Accumulation Weighing
- Truck Scales
Documentation
680 Technical Manual 680 Data Sheet Analog Option Card Manual
- NTEP:
- Yes
- NTEP CC:
- 12-123, Class III/IIIL, 10,000d
- Maximum Displayed Resolution:
- 1:1,000,000
- Maximum Internal Resolution:
- 8,000,000 counts
- Maximum Approved Resolution:
- 1:10,000
- Weighing Units:
- lb, kg, g, oz, tn, t, none
- System Linearity:
- 0.01% full scale
- Display Type:
- Red LED seven 0.8" tall, seven-segment digits
- Status Annunciators:
- 8
- Excitation Voltage:
- 10 VDC (± 5 VDC), 8 x 350 ohm or 16 x 700 ohm load cells
- Analog Signal Input Range:
- -0.5 mV/V to +7 mV/V
- Analog Signal Sensitivity:
- 1 μV/graduation recommended
- A/D Sample Rate:
- 6.25-120 Hz, software selectable
- IP Rating:
- IP69K
- Material:
- AISI 304 Stainless Steel
- Communication:
- Two RS-232, full duplex RS-485, full duplex USB (device), Ethernet (10/100)
- Operating Temperature Range:
- 14°F to 122°F
- Certified Operating Temperature Range:
- 14°F to 104°F
- Power:
- 100-240 VAC 50-60 Hz
- Housing Dimensions:
- 10.02" x 6" x 3.4"
- Weight:
- 7 lb
- Brand:
- Rice Lake
- Model:
- 680 Synergy Plus
- Part Number:
- 195176
