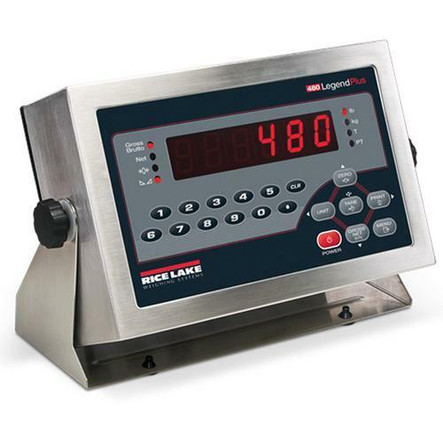

Rice Lake 480 Plus Legend Configurable Digital Weight Indicator 115 VAC, w/ USB and Ethernet TCP/IP, NTEP
The Rice Lake 480 Plus Legend is a great mid level configurable indicator. The 480 Plus Legend is ideal for many industrial weighing applications from general weighing to simple batching (optional relay card required for batching). The enclosure is constructed of heavy gauge stainless steel and boasts a NEMA 4X/IP66 rating making it a good fit for dirty, wet environments. The bright red LED display is easy to see even in conditions where lighting is poor and a full numeric keypad makes it easy for operators to enter tare values or change menu settings. This particular option has the communication options of USB or Ethernet TCP/IP. The 480 Plus Legend also has the functionality for local and remote operation when two units are connected together. The Rice Lake 480 Plus Legend is NTEP approved and can be used in Legal for Trade applications.
Features
- Additional Communication board pre installed that offers Ethernet TCP/IP or USB interface
- NEMA Type 4X/IP66, heavy-gauge stainless steel
- Full numeric keypad
- Displayed resolution up to 100,000
- Supports up to (4) 350 ohm load cells or (8) 700 ohm load cells
- Two independent serial ports, RS-232 and 20mA
- LED display, 0.8 in, six digit, seven segment
- NEMA Type 4X/IP66 rated stainless steel housing
- Display units in lb, kg, g, oz, tn or t
- PreVent breather vent
- Programmable printer ticket formats can perform gross, net, accumulator and setpoints
- Configurable with Revolution software
- Five built in options for continuous stream formats
- Operator functions through menu for audit trail, preset tare, unit ID, accumulator, time and date, setpoints, communications and print formats
- 8 configurable setpoints with sequenced batch engine
- Adaptive filter or rolling average filter
- Additional option cards available (analog output 0-10 VDC 4-20Ma), (relay output card 2 digital inputs 4 dry contact relays), *mounting bracket required for option cards*
- Optional rechargeable Lithium Ion battery
Approvals
- Measurement Canada AM-5892
- Accuracy Class III/IIIHD,10,000d
- NTEP CC 12-123 Accuracy Class III/IIIL, 10,000d
- OIML R76/2006-NL1-12.48,
- EU Test Certificate TC8322
- Accuracy Class III, 10,000d
- CE Marked
- UL/cUL Listed
Weighing Applications
- General Weighing
- Batching / Setpoints
- Accumulation Weighing
Documentation
- NTEP CC:
- 12-123A1 Class III/IIIL
- Maximum Displayed Resolution:
- 1:100,000
- Maximum Internal Resolution:
- 523,000 counts
- Maximum Approved Resolution:
- 1:10,000
- Weighing Units:
- lb, kg, g, oz, tn or t
- System Linearity:
- Within 0.01 % of full scale
- Display Type:
- Red LED display, 0.8" (20mm), six-digit, seven-segment
- Keys on Display:
- Numeric keypad, power, menu, zero, tare, gross/net, unit, print
- Status Annunciators:
- Gross, net, center of zero, stand still, lb, kg, tare, preset tare
- Excitation Voltage:
- 5VDC, 8 x 350 ohm or 16 x 700 ohm load cells
- Analog Signal Input Range:
- ±7mV/V
- Analog Signal Sensitivity:
- 0.1 uV/graduation minimum, 0.5 uV/graduation recommended
- A/D Sample Rate:
- 5, 10, 20, 40Hz, software selectable
- IP Rating:
- IP66
- NEMA Type:
- 4X
- Communication:
- USB or Ethernet TCP/IP
- RS-232 baud rates:
- 1200, 2400, 4800, 9600,19200, 38400
- RS-232 bits:
- 7 or 8
- RS-232 Parity:
- even, odd, or none
- Operating Temperature Range:
- 14°F to 122°F / -10°C to 50°C
- Certified Operating Temperature Range:
- 14°F to 104°F / -10°C to 40°C
- Power:
- 115 VAC 50/60 Hz
- Power Consumtion:
- 8 W
- Housing Dimensions:
- 9.5" x 6" x 2.75"
- Weight:
- 6.4 lb
- Brand:
- Rice Lake
- Model:
- 480 Plus Legend 115 VAC
- Part Number:
- 164596
