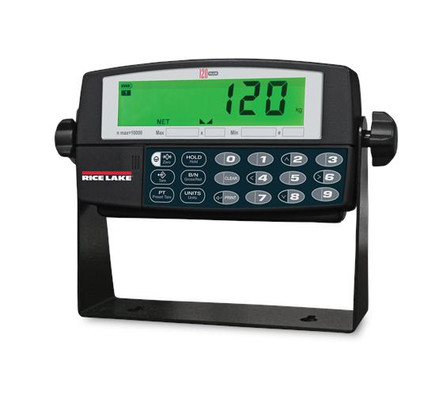

Rice Lake 120 Plus LCD Digital Weight Indicator, With Digital I/O, NTEP
The Rice Lake 120 Plus digital indicator offers a cost-effective, reliable solution for various applications including shipping and receiving, material handling, and other basic weighing needs. Power up to 4 350Ω load cells for custom applications where stable, accurate weigh data is needed. The brightly lit, easy to read LCD display features up to 6, 0.8 inch, green digits and has a display resolution of 10,000 graduations. Two independent communication ports provide full EDP and print ticket programmability.
The Rice Lake 120 Plus is NTEP approved and can be used in Legal for Trade applications.
Features
- Built in Digital I/O option card
- Internal rechargeable lithium battery and wall adapter
- Ten stored tare values
- Display hold
- Heavy gauge ABS enclosure
- Fully numeric keypad, zero, tare, preset tare, hold, gross/net, units, clear, enter/print
- Supports up to (4) 350 ohm load cells or (8) 700 ohm load cells
- Full duplex RS232 and simplex 20mA serial communication ports
- LCD display, 0.8 in (20.3 mm) six-digit, seven-segment
- Programmable printer ticket formats
- Full front-panel digital calibration
- Three-stage digital filtering
- Consecutive transaction numbering
- Time and Date
- Configurable with Revolution Software
Approvals
- NTEP CC 03-059, Class III/IIIL 10,000d
- Measurement Canada AM-5517,
- Class III/IIIHD 10,000d
- EU Test Certificate TC7028 (120) Class III, 10,000d
- EU Test Certificate TC7626 (120 Plus) Class III,10,000d
- CE marked
Weighing Applications
- General Weighing
1 year manufacturer's warranty
- Brand:
- Rice Lake Weighing Systems
- Model:
- 120 Plus
- Power:
- 115 VAC adapter and internal rechargeable lithium battery
- Battery Life:
- 40 to 60 hours
- Approvals:
- NTEP, Measurement Canada, UL, CE
- NTEP CC:
- 03-059
- Batching Software:
- No
- Keypad:
- Zero, tare, preset tare, hold, gross/net, units, numeric keypad, clear, enter/print
- Serial Communications:
- RS-232, 20mA Serial
- Display Type:
- 0.8 in six-digit LCD with back-light, seven-segment digits
- Enclosure Construction:
- Heavy Gauge ABS
- Maximum Displayed Resolution:
- 10,000
- Maximum Internal Resolution:
- 1 million counts
- System Linearity:
- ±0.01% full scale
- Excitation Voltage:
- 5 VDC
- Load Cell Capability:
- 4 x 350 ohm, 8 x 700 ohm load cells
- Analog Signal Input Range:
- -10 mV to +45 mV
- Analog Signal Sensitivity:
- 0.3 V/graduation minimum, 1.5 V/graduation recommended
- A/D Sample Rate:
- 30 Hz
- Operating Temperature Range:
- 14°F to 122°F (-10°C to 50°C)
- Certified Temperature Range:
- 14°F to 104°F (-10°C to 40°C)
- Circuit Protection:
- RFI, EMI, ESD protected
- Housing Dimensions (not including stand) (WxHxD):
- 7.32" x 6.06" x 3.74"
- Weight:
- 2.6 lb (1.2 kg)
