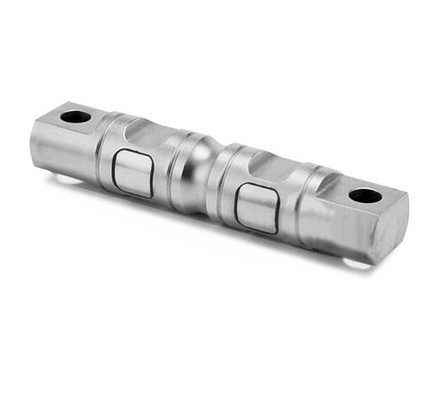

The Revere VPG 9103 series double ended beam load cell is constructed of stainless steel and features a environmental seal with an IP67 rating. The double-ended beam design ensures uniform load distribution, minimizing eccentric load effects and improving overall weighing accuracy. Capacities of this model range for 10,000 lbs all the up to 150,000 lbs.
Features
- Stainless steel construction
- Environmentally sealed with an IP67 rating
- Load cell cable length 30 ft
- Safe overload up to 150% capacity
Documentation
1year limited manufacturer's warranty
- Capacity:
- 150,000 lb
- Safe Overload:
- 150% capacity
- Safe Side Load:
- 100 % capacity
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 3.0 mV/V
- Output Resistance:
- 700 (± 7) ohm
- Input Resistance:
- 700 (± 7) ohm
- Insulation Resistance:
- 5000 megohms
- Construction / Finish:
- Stainless steel
- Seal Type:
- Environmentally sealed
- IP Rating:
- IP67
- Cable Length:
- 30 ft
- Approvals:
- FM
- Part Number:
- 17336
- Manufacturer:
- VPG Revere
- Model:
- 9103
