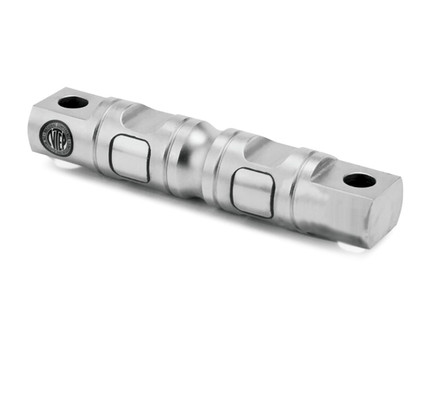

Revere VPG 5103-B10-10K-30P1 Double Ended Beam Load Cell, NTEP Class IIIL

MSRP: $694.00
$659.30
(Save $34.70)
Part #:
34495
Availability:
Typically ships in 1-2 days

The Revere VPG 5103-B10-30P1 Double Ended Beam Load Cell is constructed of alloy steel with a nickel plating. It boasts an IP67 rating and an environmental seal for resistance to water ingression. The double-ended beam design ensures uniform load distribution, minimizing eccentric load effects and improving overall weighing accuracy.

Features

  • High alloy steel nickel plated construction
  • Environmentally sealed
  • IP 67 rating
  • Load cell cable length 30 ft
  • Safe overload up to 150% capacity
  • FM approved

Interchange

  • RICE LAKE WEIGHING SYSTEMS RL70000*
  • RICE LAKE WEIGHING SYSTEMS RL72020
  • ARTECH 70210
  • METTLER-TOLEDO SLD 430

Documentation

Revere VPG 5103 Data Sheet

1 year limited manufacturer's warranty
Capacity:
10,000 lb
NTEP:
Yes
Class:
IIIL
Safe Overload:
150% capacity
Cable Color Code:
Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
Rated Excitation:
5 to 10 VDC (Maximum of 15)
Full Scale Output:
3 mV/V
Input Resistance:
700 +/- 7 ohms
Output Resistance:
700 +/- 7 ohms
Insulation Resistance:
5000 megohms
Construction:
High alloy steel, nickel plated
Seal Type:
Environmentally sealed
IP Rating:
IP67
Combined Error:
+/- 0.025% full scale
Cable Length:
30 ft
Part Number:
34495
Approvals:
FM
Manufacturer:
VPG Revere
Model:
5103-B10-XX-30P1
