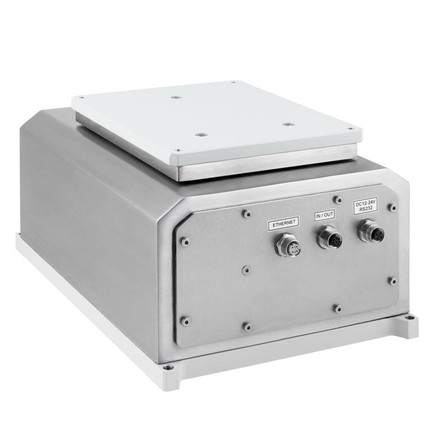

Radwag MWLH 25 is designed to integrate into weighing systems that require high IP rate, great weighing accuracy, and high measurement speed. Communication to peripherals is possible through the module's numerous interfaces: RS232, RS485, Ethernet, 2×IN, and 2×OUT. The module operates on the basis of electromagnetic digital converter. Internal calibration guarantees a consistent weighing standard between samples as is performed via internal calibration mass. Four M8 screw holes, one in each corner, allow the module to be fixed to a base.
Features
- RS232, RS485, Ethernet, 2×IN, and 2×OUT communication ports
- Aluminum construction
- Dedicated power supply
- Overload protection
- Internal calibration
- Multiple hardware configurations
- IP 65
Accessories
- HY10 terminal
- PROFIBUS interface
- 2xIN, 2xOUT interface
Note: Contact Scales Plus sales associates for pricing
Documentation
3 year manufacturer's limited warranty
- Capacity:
- 25 kg
- Readability:
- 0.1 g
- Repeatability (max):
- 0.1 g
- Linearity:
- ±0.1 g
- Stabilization Time:
- 2 s
- Tare Range:
- -25 kg
- Construction:
- Aluminum
- Calibration:
- Internal
- Communication:
- RS232, RS485, Ethernet, 2IN, 2OUT
- Weighing Device Dimensions:
- 344 x 224 x 164 mm
- Weighing Pan Diameter:
- 212 x 174 mm
- Weight:
- 12.4 kg
- Operating Temperature:
- 10° to 40°C
- Power:
- 24 V DC power supply
- Brand:
- Radwag
- Model:
- MWLH 25
