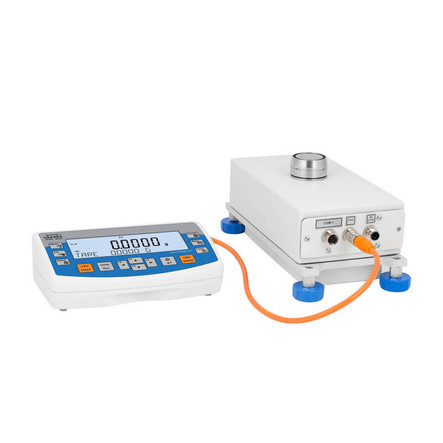

Radwag MAS.1.21 is designed to integrate into your current measurement system due to its small footprint. Getting a clear readout of measurements is simple via the included R touch panel featuring a 5.7" LCD backlit display. The module operates on the basis of electromagnetic force converter. Internal calibration guarantees a consistent weighing standard between samples as is performed via internal calibration mass. Four leveling feet help to stabilize the module and ensure proper measurements.
Features
- LCD touch panel
- RS232 communication port
- Aluminum construction
- Dedicated power supply
- Overload protection
- Internal calibration
- Multiple hardware configurations
- IP 54
Documentation
3 year manufacturer's limited warranty
- Capacity:
- 21 g
- Readability:
- 0.01 mg
- Repeatability (max):
- 0.02 mg
- Linearity:
- ±0.06 mg
- Stabilization Time:
- 6 s
- Tare Range:
- -21 g
- Construction:
- Aluminum
- Calibration:
- Internal
- Communication:
- RS 232
- Display:
- LCD
- Weighing Device Dimensions:
- 289 x 143 x 125 mm
- Weighing Pan Diameter:
- 33 mm
- Weight:
- 4.7 kg
- Operating Temperature:
- 10° to 40°C
- Power:
- 16 V DC power supply
- Brand:
- Radwag
- Model:
- MAS.1.21.R
