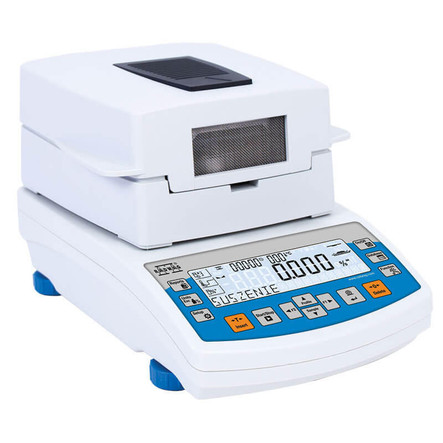

The Radwag MA R series moisture analyzers are an economical solution for laboratories measuring relative humidity for small samples of different materials. The MA R features four drying profiles and four finish modes. It also collects information in 6 data bases which include users, products, weighing, tares, drying programs, and drying process reports. The highly visible LCD display provides extra text lines for information such as supplementary messages, data, product name or tare value. The display also uses pictographs that signal the current activity, computer connection, and functions. This specific model features an IR emmiter that has a temperature range of 160°C.
Features
- IR emitter heating element
- Accuracy of Moisture readout at 0.0001%
- 50 g capacity and 0.0001 g readability
- Quick setup
- Simple navigation through menus requiring little to no training
- Temperature range up to 160°C in 1° increments
- Drying Profiles: standard, fast, step, mild
- Finish Mode: manual, automatic, time-defined, user-defined
- Display is LCD back-lit
- Heating chamber is easy to clean without any special tools required
- Pan handling tool included to make sample placement and removal a breeze
- Includes in-use cover, pan handler and power source
- 3.5" / 90 mm pans
- Sample trace-ability
Functions
- Drying Modes
- Sample Drying
- Moisture Content Analysis
- Dry Mass Determination
Databases: Collected Data is Registered in 6 databases
- Users (up to 10 users)
- Products (up to 1000 products)
- Weighings (up to 1000 weighings)
- Tares (up to 100 tares)
- Programs (up to 100 drying programs)
- Drying process reports (up to 1000 reports)
Accessories
Note: For inquiries about accessories please contact us.
- Barcode Scanner
- Communication Cables
- Printer
- Pans
- Water Vapor Permeability Determination Set
Documentation
- Capacity:
- 50 g
- Readability:
- 0.1 mg
- Moisture Content Readability:
- 0.0001%
- Moisture Content Repeatability:
- +/-0.05% (sample ~ 2g), +/-0.01% (sample ~ 10g)
- Temperature Range:
- 50°C to 160°C in 1°C increments
- Heating Element:
- IR Emitter
- Pan Size:
- 3.5 in / 90 mm
- Maximum Sample Height:
- 20 mm
- Calibration:
- External calibration
- Drying Method:
- 4 drying profiles (standard, fast, step, mild)
- Finish mode:
- 4 modes (automatic, manual, time-defined, user-defined)
- Construction:
- Die-cast metal base, ABS upper housing
- Display Type:
- LCD backlight
- Keypad:
- 14 keys
- Databases:
- 6
- Communication:
- USB-A, USB-B, RS-232, Wi-Fi 802.11 b/g/n
- Power Consumption:
- 4 W
- Heating module power:
- 450 W
- Weight:
- 4.8 kg
- Operating Temperature:
- 50 to 104°F / 10 to 40°C
- Brand:
- Radwag
- Model:
- MA 50/1.R
