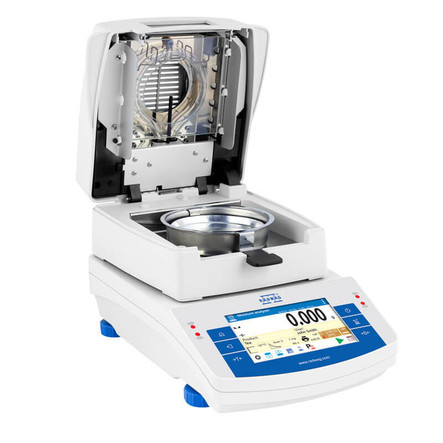

Radwag MA 210.X2.IC.A Moisture Analyzer, 210 g x 1 mg / 0.001%, IR Emitter

MSRP: $2,834.00
$2,408.90
(Save $425.10)
Part #:
MA 210.X2.IC.A
Availability:
Typically ships in 1-2 days

The Radwag MA X features four drying profiles and four finish modes. It also collects information in 6 data bases which include users, products, customers, packaging, drying programs, and drying process reports. The 5 inch color touch screen allows for clear and simple operation.  The display also uses pictographs that signal the current activity, computer connection, and functions. The MA X features an automatic drying chamber that can be opened and closed automatically using a button or proximity sensors. This specific model features an IR emitter that has a temperature range of 160°C.

Features

  • Internal Calibration
  • Automatic opening and closing of the drying chamber via sensors
  • IR emitter heating element
  • Accuracy of Moisture readout at 0.001%
  • 210 g capacity and 0.001 g readability
  • Simple navigation through menus requiring little to no training
  • Temperature range up to 160°C in 1° increments
  • Drying Profiles: standard, fast, step, mild
  • Finish Mode: manual, automatic, time-defined, user-defined
  • Heating chamber is easy to clean without any special tools required
  • Pan handling tool included to make sample placement and removal a breeze
  • Includes in-use cover, pan handler and power source
  • 3.5" / 90 mm pans
  • Sample trace-ability
  • GLP/GMP printouts-reports
  • Modern interface
  • 5” capacitive color touchscreen
  • Programmable display
  • Repeatable and customized applications
  • USB interface ensures quick transfer and copying of any results of your work (measurements, reports, databases)
  • Remote access to the moisture analyzer allows for online data management

Functions

  • Drying Modes
  • Sample Drying
  • Moisture Content Analysis
  • Dry Mass Determination

Databases: Collected Data is Registered in 6 databases

  • Users (up to 10 users)
  • Products (up to 5000 products)
  • Customers (up to 100 customers)
  • Packaging (up to 100 packaging)
  • Programs (up to 200 drying programs)
  • Drying process reports (up to 5000 reports)

Benefits of Automated Drying Chamber

  • Maintaining moisture analyzer cleanliness – operator does not touch moisture analyzer’s housing
  • Removing any shocks caused by manual closing of the chamber – the chamber closes automatically and always with the same intensity
  • Achieving high repeatability of opening and closing the drying chamber
  • Automating drying process steps
  • Safety - eliminating contact with potentially hot components of drying chamber
  • Improving operation ergonomics

Accessories

 Note: For inquiries about accessories please contact us.

  • Barcode Scanner
  • Communication Cables
  • Printer
  • Pans
  • Water Vapor Permeability Determination Set

Documentation

 MA X Moisture Analyzer Data Sheet MA X User Manual

3 year manufacturer's limited warranty
Capacity:
210 g
Readability:
1 mg
Moisture Content Readability:
0.001%
Moisture Content Repeatability:
+/-0.05% (sample ~ 2g), +/-0.01% (sample ~ 10g)
Temperature Range:
160°C in 1°C increments
Heating Element:
IR Emitter
Pan Size:
3.5 in / 90 mm
Maximum Sample Height:
20 mm
Weighing device dimensions:
338mm x 206mm x 197mm
Calibration:
Internal calibration
Drying Method:
4 drying profiles (standard, fast, step, mild)
Finish mode:
4 modes (automatic, manual, time-defined, user-defined)
Display Type:
5" color touchscreen
Keypad:
6 keys
Databases:
6
Communication:
USB-A, USB-B, RS-232, Wi-Fi 802.11 b/g/n
Power Consumption:
6 W during weighing 450 W during drying
Heating module power:
450 W
Power Supply:
230 V
Weight:
4.8 kg
Brand:
Radwag
Model:
MA 210.X2.IC.A
