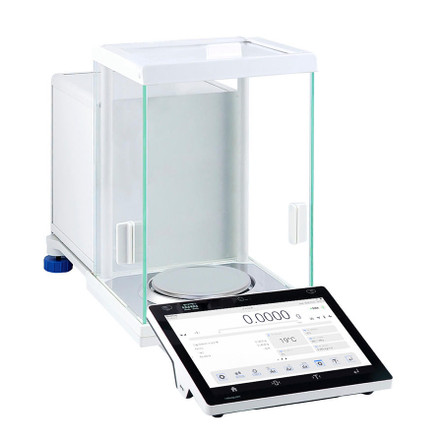

The Radwag Ellipsis XA .5Y.A analytical balance is a high-precision weighing instrument designed for laboratory applications that require the utmost accuracy. Equipped with advanced features such as automatic calibration, intuitive touchscreen display, and built-in software for data management, the XA .5Y.A analytical balance offers superior functionality and ease of use. The device also features an automatic draft shield design that minimizes air turbulence and ensures accurate measurements even in challenging laboratory environments. Constructed with high-quality materials and advanced manufacturing techniques, the Ellipsis XA .5Y.A balance delivers exceptional reliability over extended periods of use. Whether you are conducting research in pharmaceuticals, biotechnology, or other scientific fields, this analytical balance is the ideal solution for all your weighing needs.
Features
- Automatic internal calibration that senses changes in ambient conditions to maintain accuracy
- Large 10" color touchscreen with customizable home menu
- Automatic draft shield doors through use of IR sensors
- Integrated antistatic ionizer
- Semi automatic leveling system
- Works with RFID tags
- Up-to-date information on ambient conditions
- Real-time statistics from a series of measurements
- Tool free disassembly of the weighing chamber
- USP compliant
- Pharmacopoeia compliant
- Full data security
- Electronic signatures, records, and audit trails
- Quick review library that shows the last 20 measurements
- Ability to add notes via text or voice to a series of measurements for reporting
Applications
- Weighing
- Checkweighing
- Animal Weighing / Dynamic Weighing
- Parts Counting
- Percent Weighing
- Dosing
- Formulation
- Density Determination
- Statistics
- Formulations
- Pipette Calibration
- Differential weighing
- SQC
- Peak Hold
- Mass Control
ELLIPSIS will connect you directly to:
- a smartphone or a tablet (hotspot)
- a spreadsheet (USB-C, Free Link)
- a printer (Ethernet, Wi-Fi®, USB-A)
- a computer (Ethernet, Wi-Fi®, USB-A)
- a barcode scanner (USB-A)
- any large screen (HDMI)
- your PC software (Radwag communication protocol)
- a keyboard and mouse
Documentation
Radwag XA 5Y.A Ellipsis Series Analytical Balance Data Sheet
- Capacity:
- 520 g
- Readability:
- 0.1 mg
- Minimum load:
- NA
- Standard Repeatability (5% Max):
- 0.07 mg
- Standard Repeatability (Max):
- 0.18 mg
- Permissible Repeatability (Max):
- 0.25 mg
- Linearity:
- +/- 0.5 mg
- Calibration:
- Automatic Internal
- Stabilization Time:
- 1.3 seconds or less
- Pan Size:
- 100 mm diameter
- Weighing Chamber Dimensions:
- 170 mm x 200 mm x 220 mm
- Communication:
- USB-A x 2, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
- Display Type:
- 10" Color Touchscreen
- IP Rating:
- IP43
- Databases:
- 19
- Net Weight:
- 14.7 kg
- Operating Temperature:
- 50° to 104° F / 10° to 40°C
- Brand:
- Radwag
- Model:
- XA 520.5Y.A
