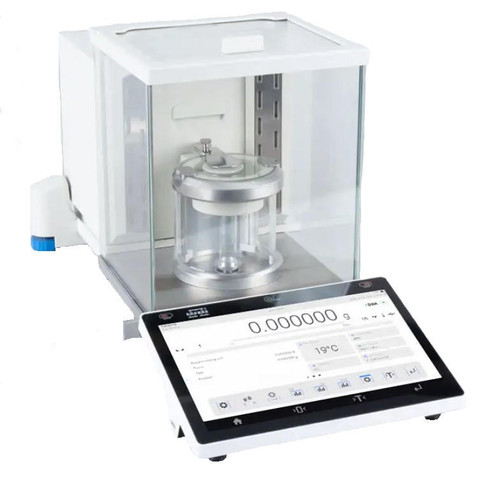

The Radwag XA 52.5Y.M.A.P Ellipsis Microbalance is a high-precision weighing instrument designed for laboratory applications that require the utmost accuracy. Equipped with advanced features such as automatic calibration, intuitive touchscreen display, and built-in software for data management, the XA 52.5Y.M.A.P microbalance offers superior functionality and ease of use. The device also features an innovative draft shield design that minimizes air turbulence and ensures accurate measurements even in challenging laboratory environments. Constructed with high-quality materials and advanced manufacturing techniques, the XA 52.5Y.M.A.P Ellipsis Series Microbalance delivers exceptional reliability over extended periods of use. Whether you are conducting research in pharmaceuticals, biotechnology, or other scientific fields, this microbalance is the ideal solution for all your weighing needs.
Radwag balance models ending in "M.A.P" are significant as this means the balance is setup specifically for pipette calibration applications. Those balances will include an automatic pipette calibration adapter. This adapter consists of and includes a base, bottom ring, glass vessel, evaporation ring, weighing pan, glass lid, mechanical closing cover, and a protecting screw.
Features
- Automatic internal calibration that senses changes in ambient conditions to maintain accuracy
- Large 10" color touchscreen with customizable home menu
- Semi automatic leveling system
- Works with RFID tags
- Up-to-date information on ambient conditions
- Real-time statistics from a series of measurements
- Tool free disassembly of the weighing chamber
- USP compliant
- Pharmacopoeia compliant
- Full data security
- Electronic signatures, records, and audit trails
- Quick review library that shows the last 20 measurements
- Ability to add notes via text or voice to a series of measurements for reporting
Applications
- Weighing
- Checkweighing
- Animal Weighing / Dynamic Weighing
- Parts Counting
- Percent Weighing
- Dosing
- Formulation
- Density Determination
- Statistics
- Formulations
- Pipette Calibration
- Differential weighing
- SQC
- Peak Hold
- Mass Control
Delivery Components Included
- Microbalance
- weighing pan
- weighing pan shield
- power supply
- automatic pipette calibration adapter: (base, bottom ring, glass vessel, pipette calibration adapter, evaporation ring, weighing pan, glass lid, mechanical closing cover, protecting screw)
- brush
- fabric dust cover
ELLIPSIS will connect you directly to:
- a smartphone or a tablet (hotspot)
- a spreadsheet (USB-C, Free Link)
- a printer (Ethernet, Wi-Fi®, USB-A)
- a computer (Ethernet, Wi-Fi®, USB-A)
- a barcode scanner (USB-A)
- any large screen (HDMI)
- your PC software (Radwag communication protocol)
- a keyboard and mouse
Documentation
Radwag XA 52.5Y.M.A.P Ellipsis Series Microbalance Data Sheet
- Capacity:
- 52 g
- Readability:
- 5 microgram
- Minimum load:
- 0.5 mg
- Standard Repeatability (5% Max):
- 2.2 microgram
- Standard Repeatability (Max):
- 6 microgram
- Permissible Repeatability (Max):
- 8 microgram
- Linearity:
- +/- 20 microgram
- Calibration:
- Automatic Internal
- Stabilization Time:
- 3.5 seconds or less
- Pan Size:
- 26 mm diameter
- Weighing Chamber Dimensions:
- 199 mm x 170 mm x 217 mm
- Communication:
- USB-A x 2, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
- Display Type:
- 10" Color Touchscreen
- Draft Shield:
- Rotating glass chamber
- IP Rating:
- IP43
- Databases:
- 19
- Net Weight:
- 9.8 kg
- Operating Temperature:
- 50° to 104° F / 10° to 40°C
- Brand:
- Radwag
- Model:
- XA 52.5Y.M.A.P
