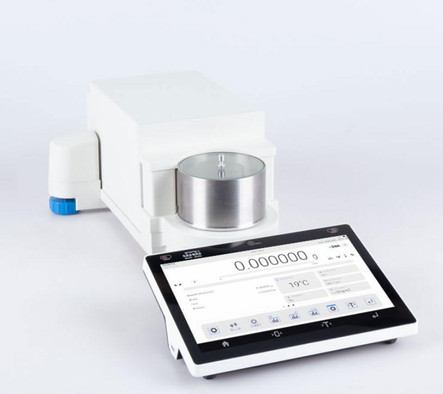

The Radwag Ellipsis MYA 5.5Y.F.A features some of the most unique and innovative features available in the balance market. It offers automatic internal calibration, hands free operation through the IR sensors, and an unmatched security of data. The 5Y is compliant in a variety of relevant functions and offers connectivity to everything from a smart phone, tablet, or even a printer. Ellipsis monitors temperature, humidity, pressure, and vibration all while displaying as graphs or a widget on the home screen. Unsuitable conditions for the balance are signaled by DWA. and all of this information is recorded in a dedicated database for the end user to reference. This function alone can save the operator valuable time and provide insight as to why a certain measurement may skew data.
This model "5.5Y.F.A" is significant because the "F" in the name means that the balance has a chamber designed for working in filter weighing applications.
Features
- Automatic internal calibration that senses changes in ambient conditions to maintain accuracy
- Large 10" color touchscreen with customizable home menu
- IR sensors for hand free operation
- Smart automatic reflex leveling system
- Works with RFID tags
- Up-to-date information on ambient conditions
- Real-time statistics from a series of measurements
- Tool free disassembly of the weighing chamber
- USP compliant
- Pharmacopoeia compliant
- Full data security
- Electronic signatures, records, and audit trails
- Quick review library that shows the last 20 measurements
- Ability to add notes via text or voice to a series of measurements for reporting
Applications
- Weighing
- Checkweighing
- Animal Weighing / Dynamic Weighing
- Parts Counting
- Percent Weighing
- Dosing
- Formulation
- Density Determination
- Statistics
- Formulations
- Pipette Calibration
- Differential weighing
- SQC
- Peak Hold
- Mass Control
ELLIPSIS will connect you directly to:
- a smartphone or a tablet (hotspot)
- a spreadsheet (USB-C, Free Link)
- a printer (Ethernet, Wi-Fi®, USB-A)
- a computer (Ethernet, Wi-Fi®, USB-A)
- a barcode scanner (USB-A)
- any large screen (HDMI)
- your PC software (Radwag communication protocol)
- a keyboard and mouse
Documentation
- Capacity:
- 5.1 g
- Readability:
- 1 microgram
- Minimum load:
- N/A
- Standard Repeatability (5% Max):
- 0.6 microgram
- Standard Repeatability (Max):
- 1.6 microgram
- Permissible Repeatability (Max):
- 2.4 microgram
- Linearity:
- 5 microgram
- Calibration:
- Automatic Internal
- Stabilization Time:
- 8 seconds or less
- Pan Size:
- 70 mm and 16 mm diameter
- Weighing Chamber Dimensions:
- 93.8 mm x 35 mm
- Communication:
- USB-A x 2, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
- Display Type:
- 10" Color Touchscreen
- Draft Shield:
- Filter Weighing chamber
- IP Rating:
- IP43
- Databases:
- 19
- Touch-free operation:
- 2 programmable proximity sensors
- Net Weight:
- 16.6 kg
- Operating Temperature:
- 50° to 104° F / 10° to 40°C
- Brand:
- Radwag
- Model:
- MYA 5.5Y.F.A
