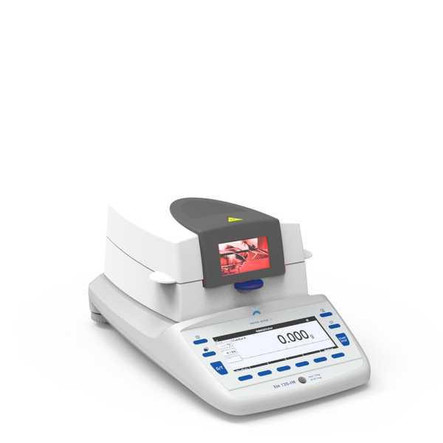

Precisa EM 120-HR Moisture Analyzer, Infrared Quartz
The Precisa EM 120-HR moisture analyzer is your solution for highly advanced and complex moisture analysis applications. It features multiple options for heat steps, time intervals, heat rate or ramp, endpoint or stop, and temperature and memory for up to 100 drying methods. Test results can be displayed as % dry mass, % moisture, ATRO dry mass, ATRO moisture, residual weight g/kg, residual weight g, moisture g. With a 124 gram capacity larger sample sizes or heavier sample containers are not an issue. The EM 120-HR also boasts a wide temperature range of 50-230°C. Automatic internal weight calibration helps keep the analyzer weighing accurately. Communicating to external devices is accomplished via USB or a RS232 interface and DB9 port. The backlit graphic LCD display is programmable to fit your specific needs.
The Precisa EM 120-HR is ideal for food, agriculture, chemical, pharmaceutical and other applications that require complex drying methods and measurements up to 0.001%.
Features
- Infrared quartz heating source
- 7 stop modes
- 3 Ramp or heat rate modes
- 3 Heat steps
- User defined ramp time
- User defined boost time
- 12 keys - 6 softkeys
- Graphic LCD display
- USB
- RS232 communication DB9 port
- Internal automatic weight calibration
- Temperature calibration, 2 point selectable
- Selectable readability
- Supports multiple report types
- Sample viewing window
Ramp Profiles
- Ramp, Standard, Boost
Applications
- Moisture analysis
- Capacity:
- 124 g
- Readability:
- (0.0001 g / 0.001%)
- Repeatability (Std Dev):
- 0.1% (1 g sample)
- Linearity:
- 0.2 mg
- Response Time:
- 4 seconds
- Heating Element:
- Infrared quartz
- Temperature Range:
- 50°C to 230°C by 1°C increments
- Timer:
- .1-600 minutes
- Pan Size:
- 3.9 inch / 100 mm
- Construction:
- Die cast aluminum
- Weight Calibration:
- Internal automatic
- Temperature Calibration:
- 100°C/160°C Selectable external
- Units:
- % dry mass, % moisture, ATRO dry mass, ATRO moisture, Residual weight g/kg, residual weight g, moisture g
- Display Type:
- Graphic LCD backlit
- Communication:
- USB and RS232 (DB9)
- Overall Dimensions (W x H x D):
- 8.3 x 7 x 13.4 in / 210 x 178 x 340 cm
- Weight:
- 14.8 lb / 6.7 kg
- Operating Temperature:
- 50 to 85°F / 10 to 30°C at 85% RH non-condensing
- Power:
- 120 VAC 50/60Hz 6.5A, 450 Watt
- Brand:
- Precisa
- Model:
- EM 120-HR
