USED/Pre-owned Notice: All used units are inspected by Scales Plus technicians to ensure proper performance that meets manufacturer specifications. These units may include slight blemishes including light scratches, scuffs or other markings. Units deemed qualified for re-sale in our used category will not have any major imperfections. All functions will be intact and working appropriately.

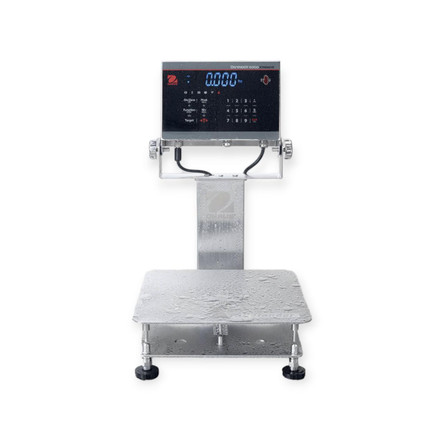

The Ohaus i-D61XWE12K1R6 extreme washdown bench scale is specially designed for the harshest of environments. It is an ideal solution for industries such as food, chemical, and pharmaceutical production, processing, and packaging. The scale is fully constructed out of 316 stainless steel for top of the line protection against corrosion and carries an IP68 immersion/IP69K washdown protection rating. To go above and beyond, Ohaus even included a knife-proof numeric touch keypad on the indicator to ensure the integrity of the buttons.
What really sets the i-D61XWE12K1R6 apart is the variety of functions and features available in just one scale. The most unique feature to point out is the touchless sensor which allows for hands-free operation, reducing contamination risk. The variety of functions include general weighing, parts counting, checkweighing, check counting, dynamic weighing, and with the addition of the discrete I/O kit, it can even operate in filling applications. Checkweighing is enhanced with a configurable 3-color bar matrix that ensures the operators are easily aware of the status. Other user-friendly features that allow for optimal performance include menu password protection, key lock, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, and auto shut-off, auto tare. This Defender 6000 also contains an internal library capable of storing up to 300 items including part number, tare weights, APWs, under/over limits, set points or reference weights. These memory storage capabilities will vary depending on which weighing mode you are using.
If the features, functions, and overall robust construction are not enough, the indicator also carries a large variety of approvals and compliance ratings. (listed below) The most significant of these being the NTEP approval and the ANSI/NSF food safety approval.
Features
- Open base design for optimal cleanliness
- 316 stainless steel construction with a hermetically sealed load cell
- IP68 immersion and IP69K washdown protection
- Includes an Ohaus specific EasyConnect connector, this simplified new installations on Ohaus scale bases that have the matching EasyConnect connector
- Additional cord grip included for use in direct hard wired applications
- NTEP and Measurement Canada approved Class III/IIIL
- Up to 75,000 displayed resolution
- Fully stainless steel design
- Supports up to 8 load cells at 350 ohms
- Knife-proof numeric touch keypad
- Communication capabilities included with additional options available
- Touchless sensor for hands free operation
- Optional external battery housing kit for power bank to be used in harsh environment
- Configurable 3-color bar matrix of i-DT61XWE for checkweighing, check counting, and filling
- Fully customizable templates allow for easy data printing
- Menu password protection
- Key lock
- Customizable environment and auto print settings
- GMP/GLP output with time/date
- Auto shutoff
- Auto tare
- Overload/underload indicators
- Stability indicator
- Library and user management (only in the i-DT61XW) with up to 300 items
Communication
- Standard: RS-232 and USB Host
- Additional options available include: Ethernet, WiFi/Bluetooth, 2nd RS232/RS485/USB Device, Analog Output, 2 In/4 Out Discrete I/O
Applications
- Weighing
- Parts Counting
- Checkweighing
- Check Counting
- Dynamic weighing/Display hold
- Percentage Weighing
- Filling (specific only to the i-DT61XWE, requires Discrete I/O kit)
Compliance
- NTEP Approved CC 20-043 Class III/IIIL
- Measurement Canada approved AM-6159
- Food Safety ANSI/NSF 169
- Ingress Protection IP68 and IP69K
- Product Safety CAN/CSA C22.2 61010-1; UL61010-1; IEC/EN 61010-1
- CAS, CE
- WEE, RoHS
- USDA-AMS Accepted
Documentation
Ohaus Defender 6000 Scale Datasheet Ohaus Defender 6000 Indicator Datasheet
Ohaus Defender 6000 Indicator Manual Ohaus Defender 6000 Indicator Instruction Guide
Ohaus Defender 6000 Indicator RS232/RS485/USB Guide Ohaus Defender 6000 Indicator Analog Guide
Ohaus Defender 6000 Indicator Discrete I/O Guide Ohaus Defender 6000 Indicator Ethernet Guide
- Capacity:
- 25 lb
- Readability:
- 0.002 lb
- Certified Readability:
- 0.005 lb
- Safe Overload:
- 150% of capacity
- Linearity/Repeatability:
- +/- 2 divisions
- NTEP:
- Yes
- NTEP CC Indicator:
- 20-043
- NTEP CC Base:
- 20-064
- NTEP Class:
- lll, IIIL
- Measurement Canada Approved:
- Yes, AM-6159 Class lll, lllHD
- Food Safety Approvals:
- ANSI/NSF 169
- Maximum Displayed Resolution:
- 1:75,000
- Maximum Approved Resolution:
- 1:10,000
- Internal Resolution:
- 1,137,000 counts
- Weighing Units:
- Kilogram, Gram, Pound, Ounce, Pound: Ounce
- Display:
- 6-digit, 7-segment white LED, 0.8" high digits
- Checkweighing Indicators:
- 3 color (red, green, orange)
- Controls:
- 6 function keys, 12 numeric capacitive keypad, and touchless sensor
- IP Rating:
- IP68/IP69K
- Typical Stabilization Time:
- 1 second
- Zeroing Range:
- +/-2% or +/-100% of capacity
- Communication:
- RS232 and USB Host included Optional Ethernet, WiFi/Bluetooth, 2nd RS232/RS485/USB Device, Analog Output, 2 In/4 Out Discrete I/O
- Optional Communication:
- Ethernet, WiFi/Bluetooth, 2nd RS232/RS485/USB Device, Analog Output, 2 In/4 Out Discrete I/O
- Operating Temperature Range:
- 14°F to 104°F / -10°C to 40°C
- Power:
- 100-240 VAC / 50/60 Hz Universal Power Supply, hardwired or external power bank
- Indicator Dimensions (including bracket):
- 11.8" x 10.4" x 5.3"
- Platform Dimension (WxD):
- 11.8" x 11.8"
- Column Height:
- 10.2"
- Weight:
- 24.7 lb
- Brand:
- OHAUS
- Model:
- i-D61XWE12K1R6
