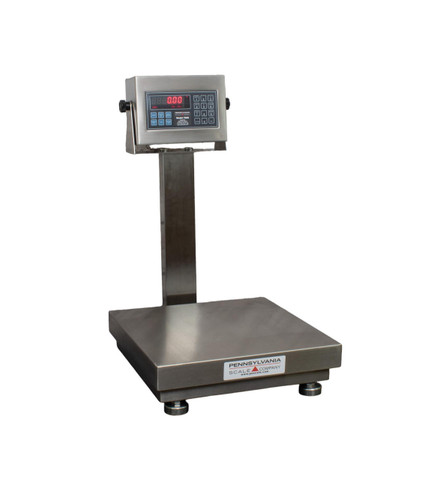

Pennsylvania Scale SS6576 bench scales feature full stainless steel construction and are approved for washdown applications with an IP66X/IP67 rating. The 7600/4WD indicator includes a fully numeric keypad, multiple weighing applications, and optional communication expansion. SS6576 series bench scales have an outstanding 300% capacity overload rating and are backed by an impressive four year warranty.
NTEP approved for use in legal for trade applications. SS6576 bench scales that end with "-AO" will include the analog output option pre-installed by the factory. The analog output is either 0-10 VDC or 4-20mA via a two conductor cable.
SS6500 Features
- Fully constructed out of 304 stainless steel
- 18" tall column mount
- HD design with full tube steel frame and thick gauge top plate
- IP66K/IP67/NEMA 4X rated for washdown
- Adjustable leveling feet
- 300% capacity overload protection
7600/4WD Features
- Analog output - jumper select for 0-10 VDC or 4-20mA output via two conductor cable
- IP66K/IP67 rated for use in washdown
- 304SS enclosure and u-bracket mount
- Full numeric keypad for entering APW, Tare, Date, Time and ID
- High visibility 0.56" red LED display
- Heavy duty power cable for use in tough environments
Applications
- Weighing
- Checkweighing
- Gross/net weighing
- Accumulation
- Washdown/sanitary weighing
Documentation
Pennsylvania Scale 7600 Manual Pennsylvania Scale 6500 Data Sheet
- IP Rating:
- IP66K, IP67, NEMA 4X
- Capacity:
- 500 lb
- Readability:
- 0.1 lb
- NTEP:
- Yes
- Class:
- III
- Indicator CC:
- 97-009A31
- Base CC:
- 17-067
- Weighing Units:
- lb, kg, oz, g, lb/oz (allows for two to be readily available)
- Communication:
- Analog
- Construction:
- All components are constructed out of stainless steel
- Display:
- 0.56" red LED display
- Mount:
- 18" stainless steel column
- Indicator Dimensions:
- 11" w x 7" h x 4" d
- Base Dimensions:
- 16" x 16"
- Power:
- HD cable, standard 115V US plug
- Brand:
- Pennsylvania Scale
- Model:
- SS6576-1616-500-56729-AO
