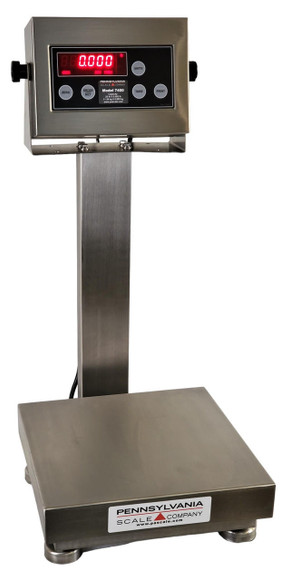

Pennsylvania Scale SS6574 bench scales feature full stainless steel construction and are approved for washdown applications with an IP66X/IP67 rating. The corresponding 7400WD indicator is also IP66K/IP67 rated and includes multiple weighing applications, user-friendly 5-key operation and communication expansion options beyond the standard serial port. SS6574 series bench scales have an outstanding 300% capacity overload rating and are backed by an impressive four year warranty.
Platform Features
- Fully stainless steel construction
- 18" tall column mount
- HD design with full tube steel frame and thick gauge top plate
- IP66K/IP67/NEMA 4X rated
- Adjustable leveling feet
- 300% capacity overload protection
Indicator Features
- Stainless steel IP66K/IP67 rated
- Fast setup and simple operation with 5 button keypad
- High visibility red LED display with 0.6" high digits
- Heavy duty power cable for use in tough environments
- Serial com port standard, bidirectional, and programmable
- Additional communication available with optional expansion
Applications
- Weighing
- Checkweighing
- Gross/net weighing
- Washdown/sanitary weighing
Documentation
Pennsylvania Scale 7400 Technical Manual Pennsylvania Scale 6500 Data Sheet
4 year limited manufacturer's warranty
- IP Rating:
- IP66K, IP67, NEMA 4X
- Capacity:
- 25 lb
- Readability:
- 0.005 lb
- Weighing Units:
- lb, kg, oz, g, lb/oz (allows for two to be readily available)
- Communication:
- Bi-directional programmable RS-232
- Construction:
- All components are constructed out of stainless steel
- Display:
- 0.6" red LED display
- Mount:
- 18" stainless steel column
- Indicator Dimensions:
- 10" w x 6.5" h x 4" d
- Base Dimensions:
- 12" x 12"
- Power:
- HD cable, standard 115V US plug
- Brand:
- Pennsylvania Scale
- Model:
- SS6574-1212-25-56729
- Options not Included:
- Analog, Ethernet, Setpoint/Relays
