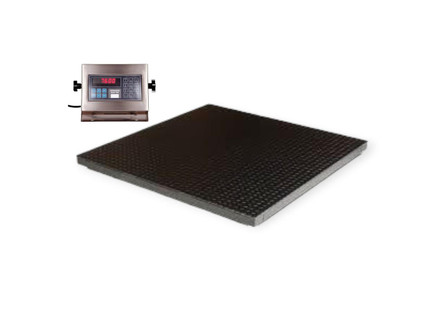

Pennsylvania Scale M6600 floor scales are designed with durability and accuracy in mind. This M6600 floor scale is paired with the Pennsylvania Scale 7600/4WD washdown resistant indicator. The 7600/4WD is a durable industrial grade indicator that is backed by a 4 year manufacturer's warranty. M6600 series floor scale bases are also backed by an impressive 5 year manufacturer's warranty. When paired the M6600-7600/4WD floor scale package is NTEP and Measurement Canada approved for use in legal for trade applications.
M6600 Features
- HD design with full tube steel frame and rugged diamond tread deck plate
- Powder coated finish
- 4x NTEP approved load cells
- Adjustable leveling feet
- 20' homerun cable
7600/4WD Features
- IP66K/IP67 rated for use in washdown
- 304SS enclosure and u-bracket mount
- Full numeric keypad for entering APW, Tare, Date, Time and ID
- High visibility 0.56" red LED display
- Heavy duty power cable for use in tough environments
- Bi-directional programmable RS-232
Applications
- Weighing
- Parts counting
- Accumulation
Documentation
Pennsylvania Scale 6600 Data Sheet Pennsylvania Scale 7600 Manual
5 year limited manufacturer's warranty on the floor scale and 4 year limited manufacturer's warranty on the indicator
- Capacity:
- 5000 lb
- Readability:
- 1 lb
- NTEP:
- Yes
- Class:
- III
- Base NTEP CC:
- 90-097A3
- Indicator NTEP CC:
- 97-009A31
- Other Approvals:
- Measurement Canada
- Operating Temperature:
- 14F to 104F
- Floor Scale Construction:
- Full tube steel frame, diamond tread top plate, powder coat finish
- Indicator Construction:
- Stainless steel enclosure
- Display:
- 0.56" red LED display
- Indicator Washdown Rating:
- IP66K/IP67
- Weighing Units:
- Weigh in 2 units, lb, kg, oz, lb-oz, dwt, oz T, custom
- Communication:
- Bi-directional programmable RS-232
- Homerun Cable Length:
- 20' included
- Dimensions of Floor Scale:
- 24" x 24" x 3"
- Brand:
- Pennsylvania Scale
- Model:
- M6600-2424-5K-7600/4WD
- Options Not Included:
- Ethernet, Analog Output, Remote Display, Panel Mount
