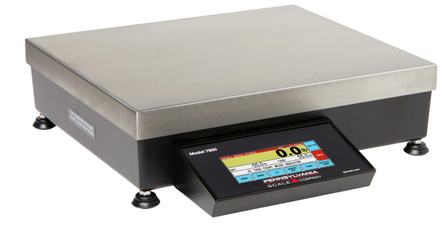

Pennsylvania Scale 7800-5HR-AO Bench Scale w/ Analog Output, 5 lb x 0.0005 lb

MSRP: $1,840.00
$1,656.00
(Save $184.00)
Part #:
7800-5HR-AO
Availability:
Typically ships in 1-2 days

Pennsylvania Scale 7800 series bench scales are a high-quality option for industrial applications requiring parts counting, check weighing, and general weighing. The 7800 series features the well-known Pennsylvania Scale dependability with a modernized "touch". All 7800 series scales include a full-color touchscreen with high-impact glass shielding to prevent damage from dropped parts. The touch screen is 4.6" wide, shows a variety of status annunciators, and can display a full numeric keypad. Pennsylvania 7800s include a 750 SKU database for storing and recalling IDs that track piece weights, tare weights, and more. The 7800 series is capable of expanded operations through optional accessories such as dual base weighing, Ethernet IP communication, and analog communication. For more optional accessories, check out the list below.

Part numbers of the 7800 series that end with "-AO" will include the analog output option pre-installed by the factory. Analog is 0-10 VDC or 4-20mA output via a two conductor cable.

Features

  • 4.6" full color touchscreen display with high impact glass shield
  • Extensive yet user friendly menu and interface
  • HD die cast aluminum base and SS pan
  • Full alpha-numeric QWERTY keyboard for easy entry of data
  • SKU/Product ID Database to store alphanumeric Part#, Description, Piece Weight, Tare Weight, 3 user-defined Fields, Over/Under Check weigh Settings, Setpoint/Relay Target settings
  • 750 SKU lookup data base
  • Single or optional dual base-counting and weighing (not included w/ standard)
  • Multiple count modes and Auto Sample Update and percent-of error/accuracy display
  • Fast one-step or two-step counting
  • Integrated level bubble ensures proper setup

Applications

  • Weighing
  • Parts Counting
  • Checkweighing
  • Accumulation
  • Percentage
  • ID Recall

Documentation

Pennsylvania Scale 7800 Data Sheet Pennsylvania Scale 7800 Manual Pennsylvania Scale 7800 Ethernet IP Data Sheet

4 year manufacturer's warranty
Capacity:
5 lb
Readability:
0.0005 lb
Standard Display Resolution:
1/10,000
Maximum Stable Display Resolution:
1/50,000
Internal Resolution:
1:8,000,000
Pan Size:
12" x 14"
Weighing Units (only two units usable at any one time):
lb., kg, oz t, lb. t, gr, dwt, oz, c, oz f, l, ml, tons and lb. - oz
Construction:
HD die cast aluminum frame, stainless steel weighing pan
Display:
800 X 320 dot resolution, and 4.6” full-color LCD display with resistive touch panel
Calibration:
External
Communication:
Two standard serial ports
Output Included:
Analog
SKU Database:
750
Annunciators:
Gross, Net, Tare, Count, Piece Weight, % Accuracy, Check Weigh Over/Under/Accept, Setpoint Status, Active ID and Base 2
Power:
115 VAC
Power Consumption:
0.25A at 115 VAC
Circuit Protection:
RFI, EMI, ESD Protection ADC shielded
Operating Temperature:
14F to 104F
Brand:
Pennsylvania Scale
Model:
7800-5HR-AO
