Pennsylvania Scale 7800 series bench scales are a high-quality option for industrial applications requiring parts counting, check weighing, and general weighing. The 7800 series features the well-known Pennsylvania Scale dependability with a modernized "touch". All 7800 series scales include a full-color touchscreen with high-impact glass shielding to prevent damage from dropped parts. The touch screen is 4.6" wide, shows a variety of status annunciators, and can display a full numeric keypad. Pennsylvania 7800s include a 750 SKU database for storing and recalling IDs that track piece weights, tare weights, and more. The 7800 series is capable of expanded operations through optional accessories such as dual base weighing, Ethernet IP communication, and analog communication.

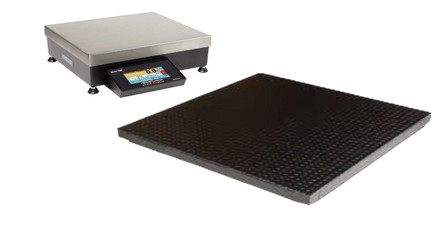

This package includes the 7800-50HR bench scale and the M6600 floor scale pre-installed and configured from the factory. This system enables the end user to weigh, count, and checkweigh samples from large to small, all in one location.
7800-HR Features
- High resolution
- 4.6" full color touchscreen display with high impact glass shield
- Extensive yet user friendly menu and interface
- HD die cast aluminum base and SS pan
- Full alpha-numeric QWERTY keyboard for easy entry of data
- SKU/Product ID Database to store alphanumeric Part#, Description, Piece Weight, Tare Weight, 3 user-defined Fields, Over/Under Check weigh Settings, Setpoint/Relay Target settings
- 750 SKU lookup data base
- Multiple count modes and Auto Sample Update and percent-of error/accuracy display
- Fast one-step or two-step counting
- Integrated level bubble ensures proper setup
M6600 Features
- HD design with a full tube steel frame and rugged diamond tread deck plate
- Powder coat finish
- 4 NTEP approved load cells
- Adjustable leveling feet
- 20' homerun cable
Applications
- Weighing
- Parts Counting
- Checkweighing
- Accumulation
- Percentage
- ID Recall
Documentation
Pennsylvania Scale 7800 Data Sheet Pennsylvania Scale 7800 Manual Pennsylvania Scale 6600 Data Sheet
- Capacity:
- 50 lb
- Readability:
- 0.002 lb
- Floor Scale Capacity:
- 10,000 lb
- Floor Scale Readability:
- 2 lb
- Standard Display Resolution:
- 1/10,000
- Maximum Stable Display Resolution:
- 1/50,000
- Internal Resolution:
- 1:8,000,000
- 7800 Pan Size:
- 12" x 14"
- M6600 Base Size:
- 60" x 60"
- Weighing Units (only two units usable at any one time):
- lb., kg, oz t, lb. t, gr, dwt, oz, c, oz f, l, ml, tons and lb. - oz
- Construction:
- HD die cast aluminum frame, stainless steel weighing pan
- Display:
- 800 X 320 dot resolution, and 4.6” full-color LCD display with resistive touch panel
- Calibration:
- External
- Communication:
- Two standard serial ports
- Additional Included Feature:
- "-DB" dual base input
- SKU Database:
- 750
- Annunciators:
- Gross, Net, Tare, Count, Piece Weight, % Accuracy, Check Weigh Over/Under/Accept, Setpoint Status, Active ID and Base 2
- Power:
- 115 VAC
- Power Consumption:
- 0.25A at 115 VAC
- Circuit Protection:
- RFI, EMI, ESD Protection ADC shielded
- Operating Temperature:
- 14F to 104F
- Brand:
- Pennsylvania Scale
- Model:
- 7800-50HR-DB-M6600-6060-10K
