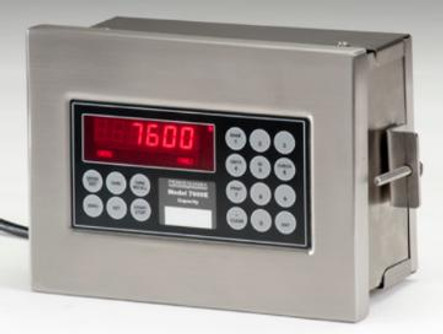

Pennsylvania Scale 7600EW Stainless Steel Universal Digital Indicator & Batching Controller, Panel Mount
The Pennsylvania Scale 7600E stainless steel indicator is perfectly designed for system integrations and is compatible with thousands of widely used indicators already in the field! The 7600E series indicator connects to any of the current Pennsylvania scale bases. The 7600E is an ideal solution for basic weighing, batching systems, truck scales, or replacements for old indicators. The 7600E series indicators are designed to last with a washdown resistant 304 stainless steel encloser and easy to replace parts all while being backed by a 2 year warranty! Pennsylvania Scale 7600E indicators are Made in the USA and have an NTEP approval for legal-for-trade weighing applications.
Standard Features
- Panel mount style
- 304 Stainless steel washdown enclosure and u-bracket mount
- NTEP approved for legal-for-trade applications
- 2 programmable serial data ports
- 300 truck in/out tare memories
- Smart Serial Setup programmable serial data strings
- 10 point linearization calibration
- ESD and RFI shielding
- Fast setup and fully numeric keypad
- High visibility red LED display with 0.6" high digits
- Highly resistant to static interference
- Compatible with most load cells and platforms
- Sealed cable entry with convenient connections or optional quick connect
- Heavy duty power cable for use in tough environments
- Speed and accuracy with 16-bit microprocessor
- 16,000,000 internal counts + 60 Updates/Second
- Audit Trail accountability feature with front panel access
- Made in the USA
- 2 year warranty
Applications
- General Weighing - keyboard tare entry, two independant outputs for printers, displays, etc
- Batching Systems - Includes pre-programmed manual or automatic batch programs with menu setup. Includes 4 relay outputs, 2 set-point targets with pre-act, 4 convienent terminal inputs permit control of batch funtions, standard AC or specified DC solid state relay for input/ output.
- Truck Scales - 300 tare weight memories and in/out program, flexible ticket formats, two seperate digital outputs for printers and scoreboards, optional relay alarms
- Checkweighing
Specifications
- Load cell A/D converter
- 24 bit delta sigma, 16 mv signal input
- Sensitivity 0.1 uV/ graduation
- 30 updates per second
- 5 VDC Excitation with 120mA max
- Up to 8 350 ohm load cells or 10 at 1000 ohms
- 117/217 VAC power
- Drives up to (8) 350 ohm or (10) 1000 ohm load cells
- Red high intensity LED display 0.6” high, 6 digits with annunciators
Data Ports
- Port 1 - RS232C or 20 mA current loop
- Port 2 - RS485, RS232C or 20 mA current loop
- Optional Ethernet communication
- Optional analog output 4-20 mA or 0-10 VDC
- USB
Options
- OEM Package for control panel or door mounting integration
- Setpoint relay board with I/O terminals
- Menu driven Digital Setpoints (4) for convenient batching
- Checkweigh mode controls relays Under/Accept/Over
- (4) AC/DC inputs + (4) AC/DC Outputs (Solid state Relays: 120 Volts, 0.5 amp or 24 VDC O.S.A.)
- Convenient Screw Terminals for all I/O connections
- Specify AC or DC solid state relay control
- Standard and custom software options
Note: For questions pertaining to the custom options please contact us.
- Approvals:
- NTEP: 97-009A1, Canadian Weights & Measures: AM-4869, Rev. 3
- Approved Divisions:
- 10,000
- Internal Counts:
- 16,777,216
- Count Updates:
- 60 per second
- Sensitivity:
- 0.1 microvolt/grad
- Excitation:
- 5 VDC 140ma (optional 240ma)
- Weighing Units:
- Weigh in 2 units - lb, kg, oz, lb-oz, dwt, oz T, custom
- Communication:
- Bi-directional programmable RS-232
- Construction:
- Stainless steel enclosure
- Display:
- 0.6" red LED display
- Mount:
- Stainless steel u-bracket; Wall or surface mount
- Brand:
- Pennsylvania Scale
- Model:
- 7600EW
