Pennsylvania Scale 7600 Series Bench Counting Scales is an ideal option for industrial parts counting and is loaded with extra options! The brilliant design of the 7600 series enable the scale to last through rough work environments and still produce incredibly accurate results! The counting feature is simple to operate with access to it at the push of a button. You can select a preset sample quantity or use the numeric keypad to select a custom quantity. The 7600 series features a standard RS-232 communication but has a wide range of other communications options. The 7600 series can also have other bases attached for a large or smaller range of capacities. On top of everything else, the 7600 is made in USA and backed by an extensive 4 year manufactures warranty you can expect the 7600 series to be an effective weighing solution for years to come!

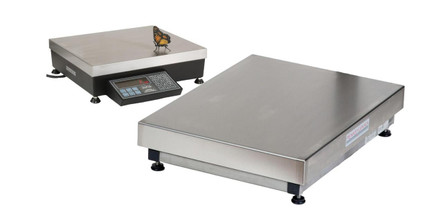

This package includes the 7600-50HR bench scale and the SS6400 scale base pre-installed and configured from the factory. This system enables the end user to weigh and count samples from large to small, all in one location.
7600-HR Features
- Heavy-duty die cast aluminum and SS construction
- Integrated level bubble ensures proper setup
- 1 part in one million resolution
- Fast one button counting
- Weight displayed in 2 units of measure plus count
- Maximum piece counts 999,999
- 4 pre-set sample sizes for counting
- Full numeric keypad for full range of options
- Auto Sample Update for improved accuracy
SS6400 Features
- Fully constructed out of 304 stainless steel
- HD design with full tube steel frame and thick gauge top plate
- IP68 rated for washdown
- Adjustable leveling feet
- Overload protection in all corners
- 10' homerun cable
Applications
- Weighing
- Parts Counting
Documentation
Pennsylvania Scale 7600 Data Sheet Pennsylvania Scale 7600 Manual Pennsylvania Scale 6400 Data Sheet
- 7600 Capacity:
- 50 lb
- 7600 Readability:
- 0.002 lb
- SS6400 Capacity:
- 250 lb
- SS6400 Readability:
- 0.05 lb
- Internal Resolution:
- 1:1,000,000
- Standard Display Divisions:
- 1:200,000
- 7600 Pan Size:
- 12" x 14"
- SS6400 Base Size:
- 24" x 24"
- 7600 Construction:
- Cast scale base, stainless steel weigh pan
- SS6400 Construction:
- Fully 304 stainless steel
- Units:
- (Two Standard lb and kg), Additional: g, oz t, lb. t, gr, dwt, oz, c, oz f, l, ml, tons and lb. - oz
- Calibration:
- External
- Communication:
- RS-232
- Display Type:
- 0.56" LCD, 7 segment, 6 digit
- Unit Weight:
- 15.25lb
- Power:
- 120 VAC
- Brand:
- Pennsylvania Scale
- Model:
- 7600-50HR-DB-SS6400-2424-250
