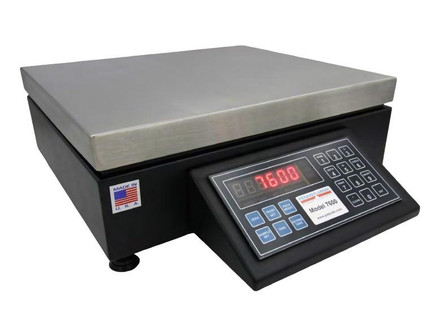

Pennsylvania Scale 7600HR Series Bench Counting Scales is an ideal option for industrial parts counting and is loaded with extra options! The brilliant design of the 7600HR series enable the scale to last through rough work environments and still produce incredibly accurate results! The counting feature is simple to operate with access to it at the push of a button. You can select a preset sample quantity or use the numeric keypad to select a custom quantity. The 7600HR series features a standard RS-232 communication but has a wide range of other communications options. The 7600HR series can also have other bases attached for a large or smaller range of capacities. The 7600HR is made in USA and backed by an extensive 4 year manufactures warranty, so you can expect the 7600HR series to be an effective weighing solution for years to come!
Features
- Heavy-duty die cast aluminum and SS construction
- Integrated level bubble ensures proper setup
- Fast one button counting
- Weight displayed in 2 units of measure plus count
- Maximum piece counts 999,999
- 4 pre-set sample sizes for counting
- Full numeric keypad for full range of options
- Auto Sample Update for improved accuracy
Applications
- Weighing
- Parts Counting
Documentation
Pennsylvania Scale 7600 Data Sheet Pennsylvania Scale 7600 Manual
- Capacity:
- 200 lb
- Readability:
- 0.01 lb
- Internal Resolution:
- 1:8,000,000
- Pan Size:
- 12" x 14"
- Construction:
- Cast scale base, stainless steel weigh pan
- Units:
- (Two Standard lb and kg), Additional: g, oz t, lb. t, gr, dwt, oz, c, oz f, l, ml, tons and lb. - oz
- Calibration:
- External
- Communication:
- Bi-directional RS-232
- Display Type:
- 0.56" LCD, 7 segment, 6 digit
- Overall Dimensions:
- 14" x 15.5" x 5.25"
- Unit Weight:
- 15.25lb
- Power:
- 120 VAC
- Brand:
- Pennsylvania Scale
- Model:
- 7600-200HR
