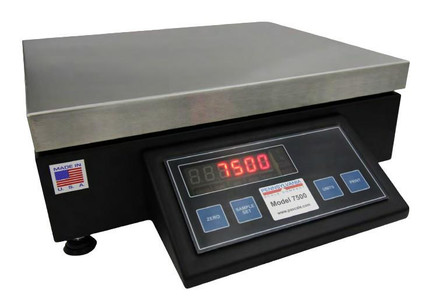

Pennsylvania Scale 7500HR Series bench scales are a high quality and user friendly option for industrial parts counting. They feature a heavy duty powder coated steel base, bright red LED display, and simple 4 key operation. It comes standard with 4 pre-set sample sizes of 10, 20, 50, or 100 pieces. The 7500HR also features a displayed weight resolution of 1:10,000 or 1:20,000 and a maximum displayed piece count of 999,999. Data communication with external devices is done via bi-directional RS-232, however many other communication options are available through optional accessories. To top it all off, the 7500HR is made in the USA and has a 4 year manufacturer's warranty against defects in materials and workmanship.
Features
- Heavy-duty powder coated steel and SS construction
- Easy to use one step counting
- Integrated level bubble ensures proper setup
- Fast one button counting
- Weight displayed in 2 units of measure plus count
- Maximum piece counts 999,999
- 4 pre-set sample sizes, 10-20-50-100 pieces
- Simple functionality with Zero, Sample Set, Units and Print function buttons
- Auto Sample Update for improved accuracy
Applications
- Weighing
- Parts Counting
Documentation
Pennsylvania Scale 7500 Data Sheet Pennsylvania Scale 7500 Manual
- Capacity:
- 2 lb
- Readability:
- 0.0002 lb
- Internal Resolution:
- 1:8,000,000
- Pan Size:
- 12" x 14"
- Construction:
- Heavy-duty powder coated steel and SS construction
- Units:
- (Two Standard lb and kg), Additional: g, oz t, lb. t, gr, dwt, oz, c, oz f, l, ml, tons and lb. - oz
- Calibration:
- External
- Communication:
- Bi-directional RS-232
- Display Type:
- 0.56" LCD, 7 segment, 6 digit
- Overall Dimensions:
- 14" x 15.5" x 5.25"
- Unit Weight:
- 15.25lb
- Power:
- 120 VAC
- Brand:
- Pennsylvania Scale
- Model:
- 7500-2HR
