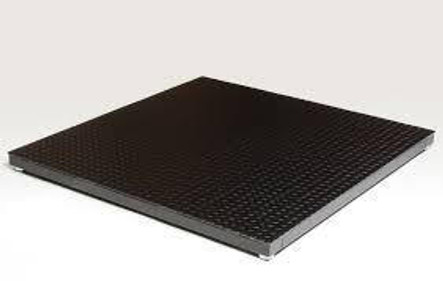

Pennsylvania Scale 6600 Series Floor Scale 5000 lb x 1 lb, 48" x 48" x 3", with 7400EXP Digital Indicator
The Pennsylvania Scale 6600 series floor scales are designed with durability and accuracy in mind! This package deal includes the 7400EXP indicator that when connected is ideal for use in almost any shipping and receiving area. The indicator comes with a one year warranty and the floor scale is backed with a 5 year warranty.
Pennsylvania Scale 6600 Series Floor Scale 48" x 48" x 3" 5000 lb with 7400EXP indicator is Made in the USA and is NTEP approved for legal-for-trade weighing applications.
Indicator Features
- NTEP CC: 90-097A3
- Die cast aluminum enclosure and a stainless steel u-bracket mount
- NTEP approved for legal-for-trade applications (excludes counting function)
- Fast setup and simple operation with 5 button keypad
- High visibility red LED display with 0.56" digits
- Compatible with most load cells and platforms
- Standard AC power adaptor included with 8' cable
- Optional portable USB power pack
- Programmable RS-232 standard
- 16 million internal counts
- Audit Trail accountability feature with front panel access
- Software features from PLUS+ Series
- 10 point linearization feature
- Simple to fix and replace parts if necessary
- Made in the USA
- 1 year warranty
Floor Scale Features
- 5000 x 1 lb capacity
- NTEP approved Class III 5000 divisions
- Rugged durable design
- Mild steel frame with powder coat finish
- 4 NTEP approved load cells
- Adjustable leveling feet
- Safety diamond plate surface - not on stainless versions
- 20' cable for connecting to indicator
- 5 year limited warranty
Applications
- General Weighing
1 year manufacturer's warranty on Indicator
5 year manufacturer's warranty on floor scale
- Indicator Approvals:
- NTEP: 97-009A4, Canadian Weights & Measures
- Floor Scale Approvals:
- NTEP: 90-097A3, Canadian Weights & Measures
- Approved Divisions:
- Class III 5,000
- NTEP:
- Yes
- Capacity:
- 5000 lb
- Division:
- 1 lb
- Internal Counts of Indicator:
- 16,000,000
- Sensitivity:
- 0.1 microvolt/grad
- Excitation:
- 5 VDC, 120 mA max
- Weighing Units:
- Weigh in 2 units - lb, kg, oz, lb-oz, dwt, oz T, custom
- Communication:
- programmable RS-232 or USB data
- Construction of Indicator:
- Die cast aluminum enclosure
- Construction of Floor Scale:
- Mild steel, powder coat finish
- Cable Length:
- 20'
- Display:
- 0.56" red LED display
- Mount:
- Stainless steel u-bracket; Wall or surface mount
- Overall Dimensions of Indicator:
- 9¢¬³w x 4¢¬³h x 3.25¢¬³d (w/bracket)
- Dimensions of Floor Scale:
- 48" x 48" x 3"
- Load Cells:
- 4 sensortronics NTEP approved load cells
- Brand:
- Pennsylvania Scale
- Model:
- 6600 / 48"x48"x3" / 5000lb and 7400EXP
