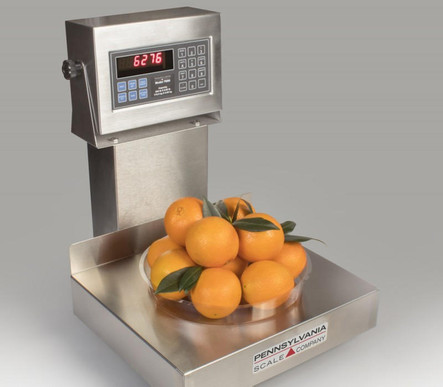

Pennsylvania Scale 6275-25 Checkweighing Bench Scale
Discontinued - Replaced with 6500 Series
The 6200 series bench scales from Pennsylvania Scale Company offers simple, easy-to-use operation, an extra large sanitary platform, and economic pricing, making the 6200 series bench scale a great choice for a wide range of applications! With their IP66 rating, the 6200 series of bench scales can be used in wet or dry conditions. The 6275-25 comes with the stainless steel 7500+ indicator featuring high resolution counting, a highly visible LED display and simple 4 key operation.
Features
- Stainless steel construction for use in harsh wet environments
- IP66 environmentally sealed aluminum load cell
- 12" x 14" platform
- Standard RS-232 data output
- Easy to use, setup, and service
- PLUS+ Series electronics for maximum interchangeability
- Two year limited warranty
7500+ Indicator
- High intensity red LED display, 0.56"
- Stainless steel enclosure with U-bracket
- Parts counting – 16 million internal counts
- 4 preset sample sizes
- Sample Update feature
- Weigh in 2 units – lb, kg, oz, lb-oz, dwt, oz T, custom
- Quick disconnect load cell connector OR hard wire through rear panel
- 10' heavy duty industrial power cord with 3-prong plug
- Powerful 16 bit microprocessor
- 16,777,216 internal counts for superb parts counting functionality
- Audit trail – enter calibration through front panel
- Standard RS-232, programmable with defaults and easy set up
Applications
- Factory and industrial environments
- Food preparation
- Packing and shipping
- Check weighing
- Parts counting
- General weighing
- Capacity:
- 25 lb / 9072 g
- Readability:
- 0.005 lb / 2 g
- Pan Size:
- 12" x 14" with 2" lip on rear
- Weighing Units:
- Lbs and kgs or any (2) weight units
- Construction:
- heavy duty cast frame, aluminum pan
- Calibration:
- External
- Communication:
- Standard RS-232 by DB9
- Indicator:
- 7500+
- Display Type:
- 0.56" red LED display
- Buttons:
- Simple 4-button, Zero, Sample Net, Units, Print
- Overall Dimensions:
- 14" x 17" x 18.5"
- Weight:
- approximately 38 lbs
- Power:
- 110 VAC or optional 220 VAC +/- 15%; 50/60 Hz; 30 Watts
- Brand:
- Pennsylvania Scale
- Model:
- 6275-25
